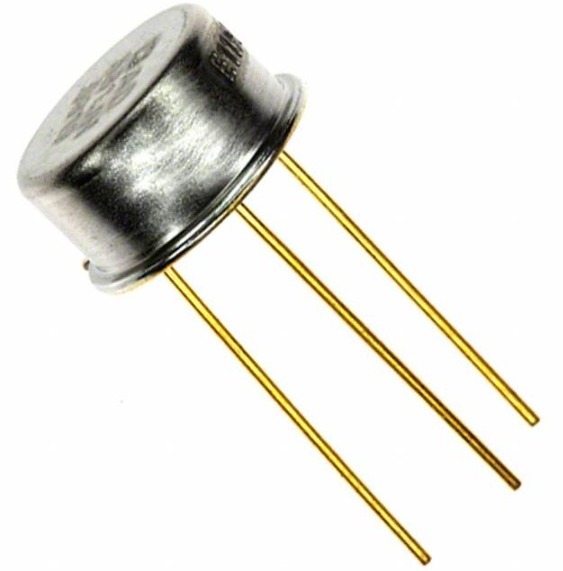

AD581 3-Pin Metal Header Package TO-5

AD581 3-Pin Metal Header Package TO-5

The AD581 is a high-stability voltage reference designed to provide a stable output voltage over a wide range of operating conditions. It features low temperature drift, excellent long-term stability, and high initial accuracy. The device operates based on a buried Zener diode, ensuring precision performance across varying temperatures and operating conditions.

DNA solutions, Nashik has various types of Pin Header. Check out our complete collection of Pin Header.

• High Initial Accuracy: Typically ±0.1% initial accuracy, minimizing the need for external calibration

• Low Temperature Coefficient: Drift rates as low as ±10 ppm/°C ensure stable performance across a wide temperature range

• Wide Operating Range: Designed to operate with input voltages typically between 15V and 40V

• Low Output Noise: Suitable for sensitive analog and digital systems.

• Long-Term Stability: Excellent performance over extended periods, ensuring reliability in critical systems

Specifications of AD581 3-Pin Metal Header Package TO-5

• Output Voltage: 5.0V (nominal)

• Temperature Coefficient: ±10 ppm/°C (typical)

• Load Regulation: Less than 0.01% for specified load conditions

• Line Regulation: Less than 0.01% for specified input voltage ranges

• Output Noise: Low noise for high-performance analog applications

• Operating Temperature Range: -55°C to +125°C

• Input Voltage Range: 15V to 40V

Applications of AD581 3-Pin Metal Header Package TO-5

• Instrumentation

• Data Acquisition Systems

• Power Supplies

• Calibration Systems

• Test Equipment

Package Includes

      1 x AD581 3-Pin Metal Header Package TO-5
