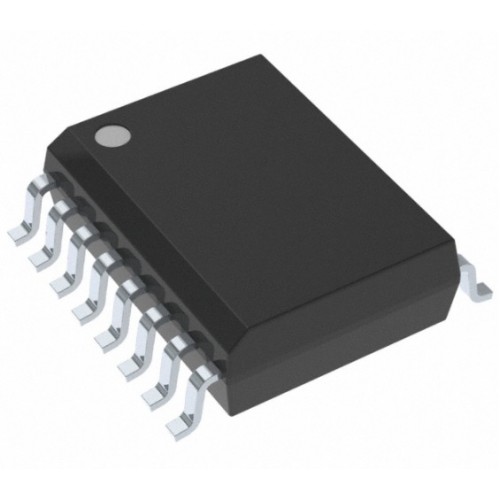

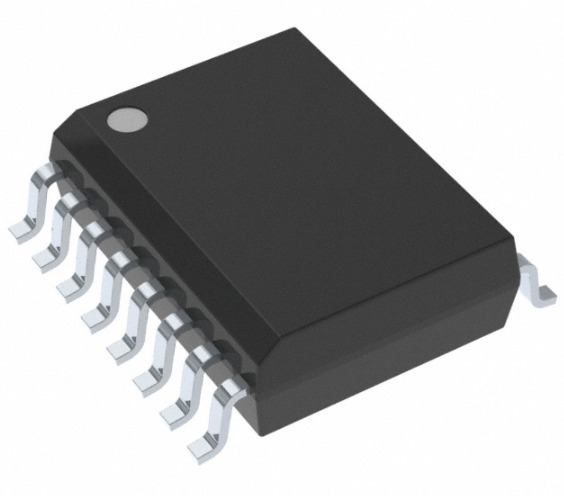

AD694ARZ Transmitter IC 4 20mA 16 SOIC

AD694ARZ Transmitter IC 4 20mA 16 SOIC

The AD694ARZ is a monolithic 4–20 mA transmitter IC designed to simplify the process of interfacing sensors to an analog current loop. It is commonly used in industrial control systems to provide a robust and noise-immune communication method for transferring analog signals over long distances. The AD694ARZ integrates key functions needed for the conversion of voltage or current inputs to a 4–20 mA output current, minimizing external components.

DNA solutions, Nashik has various types of Transmitter's. Check out our complete collection of Transmitter's.

• Linear Performance: Ensures high linearity and accuracy in current loop applications

• Wide Supply Range: Operates over a broad supply voltage range for flexibility in system design.

• External Reference Support: Allows the use of an external reference for customized applications

• Built-in Protection: Includes safeguards against reverse polarity and other fault conditions

• Temperature Stability: Designed for stable performance across a wide operating temperature range

Specifications of AD694ARZ Transmitter IC 4 20mA 16 SOIC

• Input Voltage Range: 0 V to 10 V, or ±5 mA

• Output Current Range: 4 mA to 20 mA

• Supply Voltage Range: 12 V to 36 V

• Offset and Gain Adjustment: Offset adjustable to achieve true 4 mA base current

• Compliance Voltage: Ensures proper operation with varying load resistances

• Temperature Range: -40°C to +85°C

• Package Type: 16-pin SOIC

Applications of AD694ARZ Transmitter IC 4 20mA 16 SOIC

• Industrial Process Control

• Instrumentation

• Remote Monitoring Systems

• Biomedical Equipment

• Energy Management Systems

Package Includes

      1 x AD694ARZ Transmitter IC 4 20mA 16 SOIC
