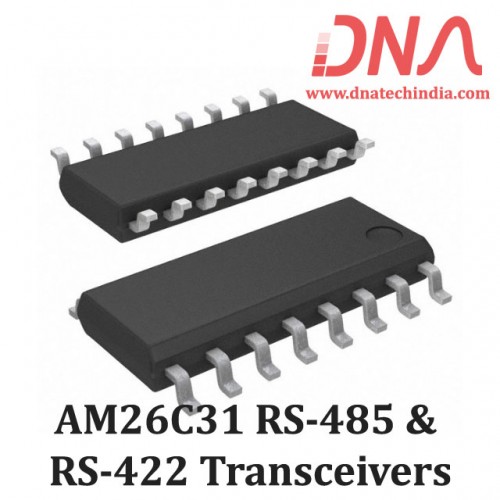

AM26C31 Differential Line Receiver (SOIC)

AM26C31 Quadruple Differential Line Receiver

AM26C31 Receiver for RS-485 & RS-422 with low power and 3-state outputs.

The AM26C31 Quadruple Differential Line Receiver is designed for balanced and unbalanced digital data transmission. This device operates efficiently with a low power consumption of only 100 µA, making it an ideal choice for various applications. It features a common enable function for all receivers and allows for both active-high and active-low inputs. Additionally, the AM26C31 supports a ±7-V common-mode range and includes fail-safe circuitry ensuring high output when inputs are open.

Manufactured using a BiCMOS process, the AM26C31 Quadruple Differential Line Receiver combines the strengths of bipolar and CMOS technologies. This results in reduced power consumption while maintaining excellent performance. Its 3-state outputs enable direct connection to bus-organized systems, making it suitable for high-reliability automotive applications, factory automation, and smart grid technologies.

For those in Nashik, the AM26C31 can be purchased at our local shop or ordered online for delivery across India. Explore our complete collection of Communication IC's to find the right components for your needs.

At DNA, we offer a range of reliable Communication IC's from top brands like the Manufacturer. Explore our collection for your electronic communication needs. Check other Communication IC's that we have in stock.

If you're searching for specific electronic components, reach out to us. We can help you find parts like Connectors, Humidity & Temperature Sensors, and more. If it’s not available, we can import it for you. Contact Us.

Features of AM26C31 Quadruple Differential Line Receiver

• Low power consumption
• ±7-V common-mode range
• 3-state outputs
• Input fail-safe circuitry
• Improved replacement for AM26LS31

Specification of AM26C31 Quadruple Differential Line Receiver

• ICC = 100 µA typical
• Input hysteresis: 60 mV typical
• tpd = 17 ns typical
• Operates from a single 5 to 7 V supply

Applications of AM26C31 Quadruple Differential Line Receiver

• High-reliability automotive applications
• Factory automation
• ATM and cash counters
• Smart grid
• AC and servo motor drives

Related Links for AM26C31 Quadruple Differential Line Receiver

• Other Products from Communication IC's Category

Package Includes

• 1 X AM26C31 Quadruple Differential Line Receiver
