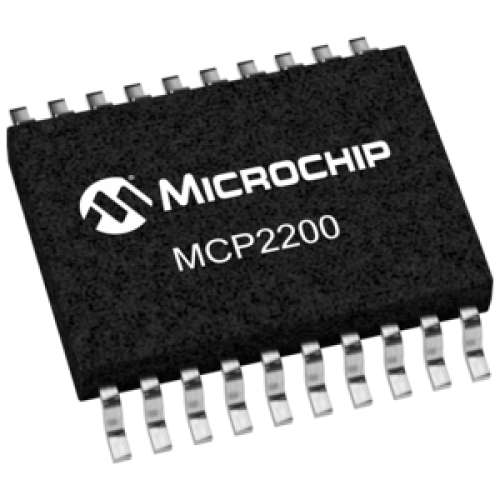

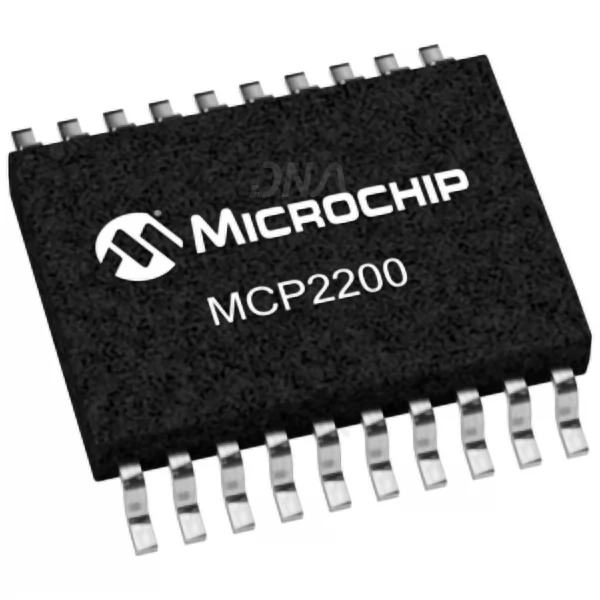

MCP2200 USB 2.0 to UART Protocol Converter with GPIO


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-07-08

  • SKU: 640 | DAB584

Availability: NotInStock priceValidUntil: 2026-07-08

  • Rs. 253.70 (inc GST)
    Rs.215.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MCP2200 USB 2.0 to UART Protocol Converter with GPIO

The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in applications that have a UART interface.

The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256 bytes of integrated user EEPROM.The MCP2200 has eight general purpose input/output pins. Four pins have alternate functions to indicate USB and communication status.

Features of MCP2200 USB 2.0 to UART Protocol Converter with GPIO

  • Supports full-speed USB (12 Mb/s)

  • Implements USB protocol composite device:

         - Communication Device Class (CDC) for communications and configuration

         - Human Interface Device (HID) for I/O control

  • Fully configurable VID and PID assignments, and string descriptors

  • Bus powered or self-powered

  • USB 2.0 Compliant : TID 40001150

  • USB Driver and Software Support

  • Universal Asynchronous Receiver/Transmitter (UART)

  • Eight general purpose I/O pins

  • 256 bytes of user EEPROM

  • USB activity LED outputs (TxLED and RxLED)

  • SSPND output pin

  • USBCFG output pin (indicates when the enumeration is completed)

  • Operating voltage : 3.0-5.5V

  • Oscillator input : 12 MHz

  • ESD protection : > 4 kV HBM

  • Industrial (I) Operating Temperature : -40°C to +85°C

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
