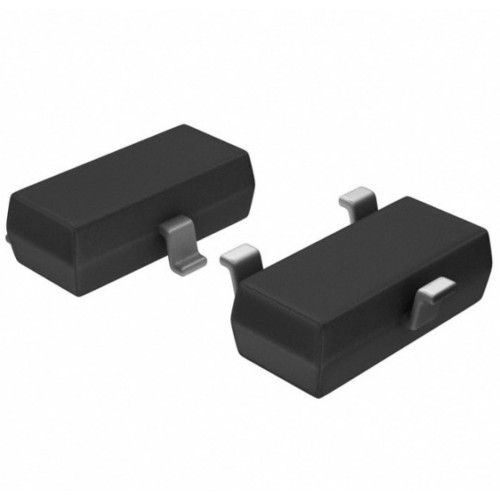

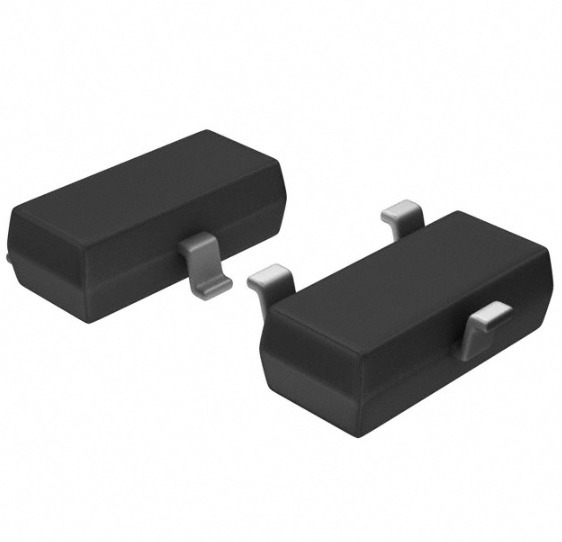

Product Images are shown for illustrative purposes only and may differ from actual product.

ESDA5V3L TVS DIODE 3VWM SOT23-3


Write a review | 0 reviews

  • Stock: 14

    Availability: InStock priceValidUntil: 2026-09-26

  • SKU: 8069 | DAH129

Availability: InStock priceValidUntil: 2026-09-26

  • Rs. 46.67 (inc GST)
    Rs.39.55 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ESDA5V3L TVS Diode

ESDA5V3L TVS Diode, 3V working voltage, low capacitance, compact SOT23-3 package.

The ESDA5V3L TVS Diode offers robust protection against ESD and EFT for sensitive electronics. Designed in a compact SOT23-3 package, it features a 3V working voltage with low clamping voltage, ensuring efficient protection without compromising signal integrity. This diode is ideal for high-speed data lines, making it suitable for various applications in consumer electronics and automotive systems.

With bidirectional protection and a fast response time, the ESDA5V3L TVS Diode reacts within nanoseconds to transient events. Its low capacitance minimizes signal distortion, while low leakage current helps in reducing power consumption during standby. This makes it a reliable choice for industrial systems and telecommunication devices.

Explore the benefits of the ESDA5V3L TVS Diode for your projects. It is perfect for IoT devices and ensures safety in electronic circuits. Check our collection for more Diodes & Transistors tailored for your needs.

At DNA, we provide a wide range of Diodes & Transistors from trusted manufacturers like Diodes. Explore our selection to find the right components for your electronic needs. Check other Diodes & Transistors that we have in stock.

If you need specific electronic parts, reach out to DNA. We can import items not in stock and support both retail and bulk orders. We also offer related components like Analog ICs, Inductors, and Humidity & Temperature Sensors. Contact Us.

Features of ESDA5V3L TVS Diode

  • Low Working Voltage
  • Bidirectional Protection
  • Low Capacitance
  • Fast Response Time
  • Low Leakage Current
  • Compact SOT23-3 Package

Specification of ESDA5V3L TVS Diode

  • Stand-off Voltage: 3 V
  • Breakdown Voltage: Typically 5.3 V
  • Clamping Voltage: Varies depending on the current
  • Peak Pulse Current: Defined for 8/20 µs waveform
  • Capacitance: Typically low
  • Power Dissipation: Depends on transient duration and repetition

Applications of ESDA5V3L TVS Diode

  • Consumer Electronics
  • High-Speed Data Lines
  • Automotive Electronics
  • Industrial Systems
  • Telecommunication
  • IoT Devices

Related Links for ESDA5V3L TVS Diode

Package Includes

  • 1 X ESDA5V3L TVS Diode
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
