Product Images are shown for illustrative purposes only and may differ from actual product.

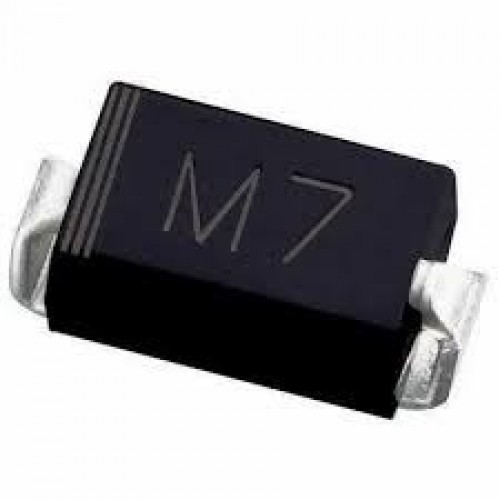

M7 SMD Diode


Write a review | 0 reviews

  • Stock: 100

    Availability: InStock priceValidUntil: 2026-10-18

  • SKU: 6015 | DAD695

Availability: InStock priceValidUntil: 2026-10-18

  • Rs. 3.54 (inc GST)
    Rs.3.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

M7 SMD Diode - General Purpose Rectifier

M7 Diode is a surface mount rectifier with 1A forward current and 1000V reverse voltage.

The M7 SMD Diode is a versatile surface mount general purpose rectifier designed for various applications. With a forward current rating of 1A and a maximum reverse voltage of 1000V, this diode is reliable for consumer electronics, automotive, and industrial uses. Its compact design and molded plastic case ensure durability and optimal performance. The M7 SMD Diode features low reverse leakage and high surge current capability, making it suitable for automated assembly processes.

Engineered for efficiency, the M7 SMD Diode guarantees high-temperature soldering up to 250°C for 10 seconds. This diode's robust construction includes built-in strain relief, which facilitates easy pick and place during installation. Whether you are developing electronic circuits or need replacements, the M7 SMD Diode is an excellent choice for your projects in India.

Explore the reliability and performance of the M7 SMD Diode for your next design. It is perfect for applications requiring high current capability and low forward voltage drop, ensuring your devices operate smoothly and efficiently.

Discover quality Diodes & Transistors from leading manufacturers at DNA. Explore the M7 SMD Diode and enhance your electronic projects. Check other Diodes & Transistors that we have in stock.

Are you looking for specific electronic components? At DNA, we can help you find the right parts, including Sensor Modules, Development Boards, and more. If we don’t have it, we can import it for you. Contact Us.

Features of M7 SMD Diode

  • Flammability Classification 94V-O
  • Low reverse leakage
  • Built-in strain relief
  • High forward surge current capability
  • High-temperature soldering guarantee
  • Low forward voltage drop
  • Easy pick and place

Specifications of M7 SMD Diode

  • Part Number: M7
  • Diode Type: Rectifier
  • Mounting Type: Surface-Mount Device (SMD)
  • Package Type: DO-214AC (SMA)
  • Reverse Voltage (VR): 1000V (maximum)
  • Forward Current (IF): 1A (average)
  • Case Material: Molded plastic, UL94V-0 flame retardant
  • Polarity: Cathode marked by a band

Applications of M7 SMD Diode

  • Consumer electronics
  • Automotive circuits
  • Industrial equipment
  • Automated assembly
  • Power supply systems

Package Includes

  • 1 X M7 SMD Diode
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
