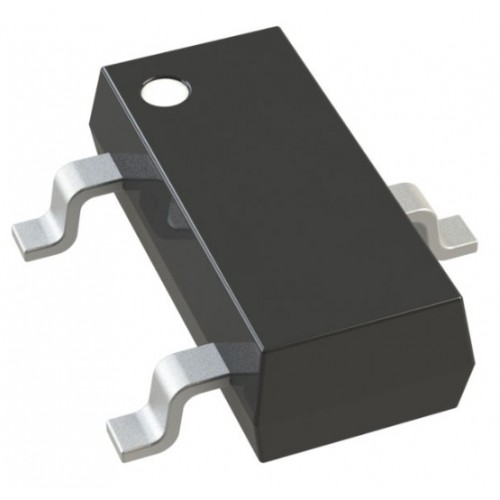

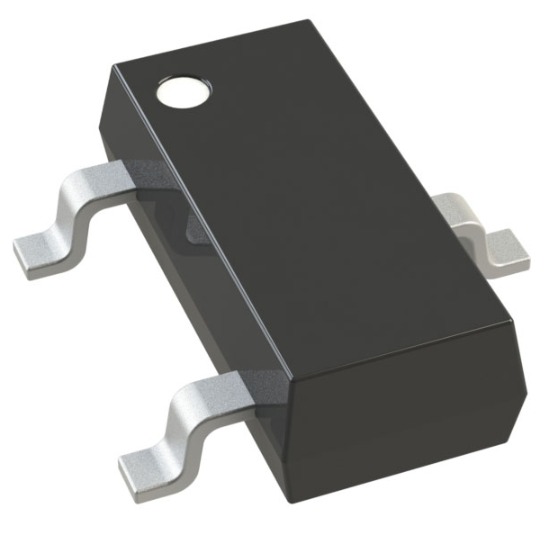

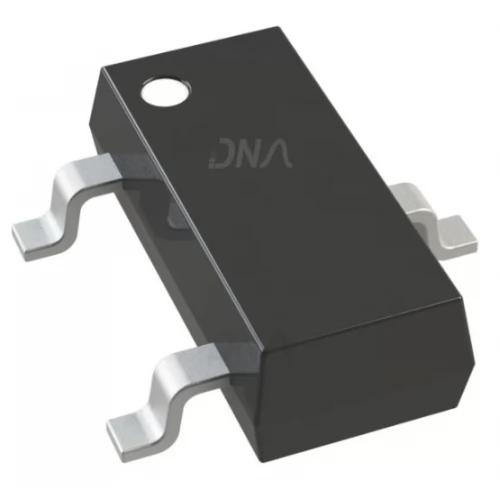

Product Images are shown for illustrative purposes only and may differ from actual product.

PESD2CANFD36VT QR NEXPERIA TVS DIODE

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • SKU: 7870 | DAG800

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 27.00 (inc GST)
    Rs.22.88 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Nexperia PESD2CANFD36VT QR TVS Diode

PESD2CANFD36VT QR, Bidirectional TVS Diode, ±30 kV ESD protection, 3.5 pF capacitance.

The Nexperia PESD2CANFD36VT QR TVS Diode is engineered to protect high-speed data lines in automotive and industrial applications. It offers robust protection with ±30 kV ESD immunity and complies with IEC61000-4-2 standards, ensuring reliability in challenging environments. With a low line capacitance of 3.5 pF, it maintains signal integrity in CAN and CAN FD systems, making it ideal for modern electronic designs.
This TVS diode excels in surge current handling, capable of 3 A, while its clamping voltage typically reaches 55 V during surge events. The PESD2CANFD36VT is perfect for consumer electronics and other sensitive applications where data integrity is crucial. Its compact SOT23 package ensures easy integration into your designs.
For dependable electrical protection, consider the Nexperia PESD2CANFD36VT QR TVS Diode. Its superior specifications and features make it a reliable choice for safeguarding your electronic components from transient voltage spikes. Explore how this diode can enhance your projects today.
Discover Nexperia's top-quality solutions for Diodes & Transistors at DNA. Safeguard your designs with reliable protection components. Check other "Diodes & Transistors" that we have in stock.
If you are looking for specific electronic components, reach out to us. We can import items not in stock and offer support for both retail and bulk orders. Explore related items like Digital IC, Super Capacitor, Sensor Module, and more. Contact Us.

Features of Nexperia PESD2CANFD36VT QR TVS Diode

  • High ESD protection levels up to ±30 kV
  • Conforms to IEC 61000-4-2 standards
  • Surge current capability of 3 A
  • Low line capacitance of 3.5 pF
  • Protects data lines in CAN and CAN FD systems.

Specification of Nexperia PESD2CANFD36VT QR TVS Diode

  • Reverse Standoff Voltage (VRWM): ±36 V
  • Breakdown Voltage (VBR): Min 40 V
  • Leakage Current: ≤ 1 nA at 36 V
  • Clamping Voltage (VCL): Typically 55 V (at 3 A surge)
  • Contact Discharge: ±30 kV
  • Air Discharge: ±30 kV
  • Package: SOT23.

Applications of Nexperia PESD2CANFD36VT QR TVS Diode

  • Automotive
  • Industrial
  • Consumer Electronics
  • Data Line Protection.

Related Links for Nexperia PESD2CANFD36VT QR TVS Diode

Package Includes

  • 1 X PESD2CANFD36VT QR NEXPERIA TVS DIODE
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
