TIP122 Darlington Transistor

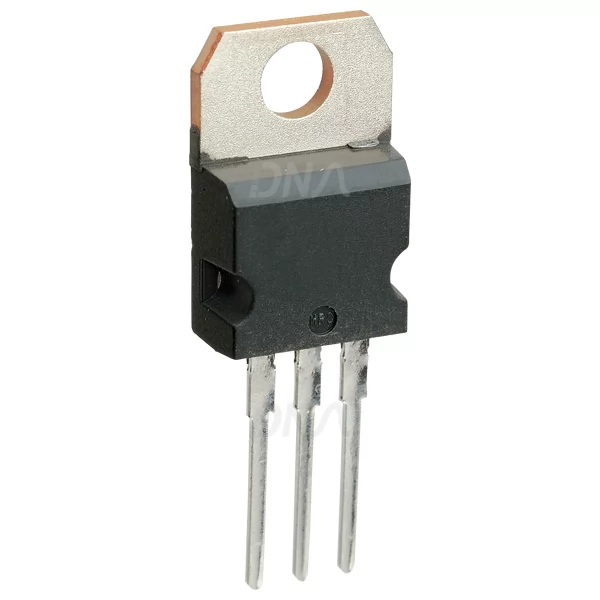

TIP122 Darlington NPN Transistor

TIP122 NPN Transistor, 5A collector current, 100V collector-emitter voltage.

The TIP122 Darlington NPN Transistor is ideal for high current applications, providing a collector current of 5 Amperes. With a collector-emitter voltage of 100 Volts and a peak collector current of 8 Amperes, it ensures reliable performance in various electronic circuits. This transistor operates efficiently within a temperature range of -65°C to +150°C, making it suitable for diverse environments.

Engineered in a TO220AB plastic case, the TIP122 Darlington NPN Transistor is designed for easy mounting and integration. It is perfect for switching applications and can be paired with complementary PNP transistors like TIP125, TIP126, or TIP127 for enhanced circuit flexibility. Whether you are designing power amplifiers or control circuits, this transistor meets your needs with confidence.

Explore the benefits of the TIP122 Darlington NPN Transistor in your next project. Its robust specifications and proven reliability make it a top choice for engineers and hobbyists alike. For those in India looking for dependable electronic components, the TIP122 offers a practical solution for high-performance applications.

At DNA, we offer the TIP122 Darlington NPN Transistor from trusted manufacturers in the Diodes & Transistors category. Explore our range of reliable components to enhance your projects. Check other "Diodes & Transistors" that we have in stock.

If you are searching for specific electronic components, DNA can help. We support retail and bulk orders and can import items if they are not available. Explore related products like SMPS, Sensor Modules, and Microcontrollers. Contact Us.

Features of TIP122 Darlington NPN Transistor

• High collector current of 5A
• Collector-emitter voltage of 100V
• TO220AB package for easy mounting

Specification of TIP122 Darlington NPN Transistor

• Collector-Emitter Voltage (VCE): 100V
• Collector-Base Voltage (VCB): 100V
• Emitter-Base Voltage (VEB): 5V
• Junction Temperature (Tj): -65 to +150°C
• Storage Temperature (TS): -65 to +150°C

Applications of TIP122 Darlington NPN Transistor

• Power amplifiers
• Motor control circuits
• Switching applications
• Signal processing
• Control systems

Package Includes

• 1 X TIP122 Darlington NPN Transistor
