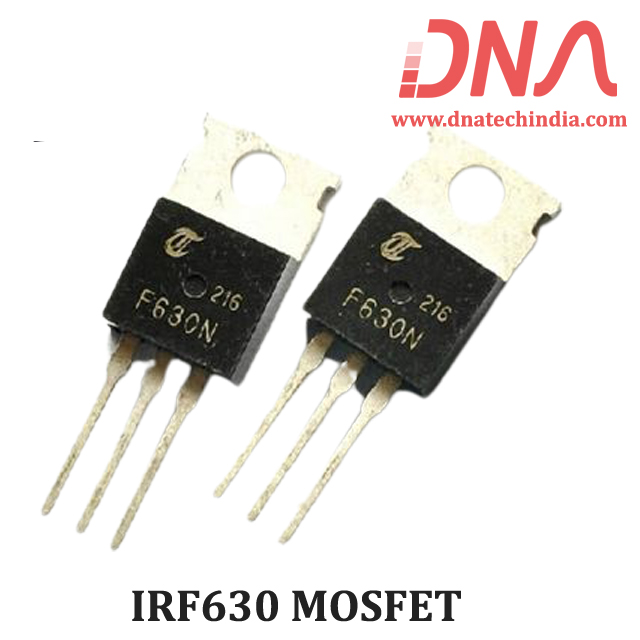

IRF630 Power MOSFET

Write a review | 0 reviews

Stock: 12

SKU: 569 | DAA172

Rs. 35.40 (inc GST)
Rs.30.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

IRF630 MOSFET

IRF630 is a third generation N Channel Power MOSFETs that provides designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of IRF630N MOSFET

Extremely high dv/dt capability
Very low intrinsic capacitances
Gate charge minimized
V_DS Drain-source voltage (V_GS = 0) 200 V
V_DGRDrain-gate voltage (R_GS = 20 kΩ) 200 V
V_GS Gate-source voltage ± 20 V
I_D Drain current (continuous) at T_C= 25°C 9A
I_D Drain current (continuous) at T_C=100°C 5.7A
P_TOT Total dissipation at T_C = 25°C 75W
