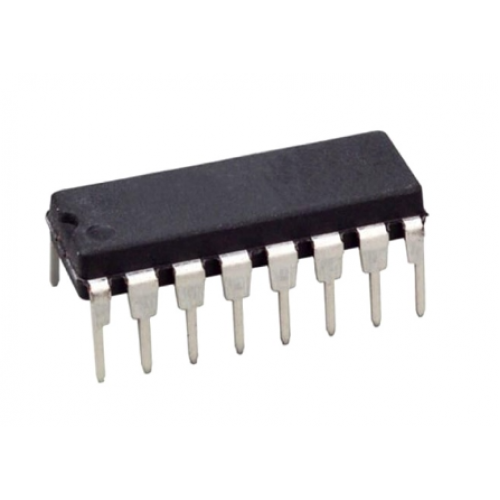

Product Images are shown for illustrative purposes only and may differ from actual product.
LM13700 Dual Operational Transconductance Amplifier IC
- Stock: Out Of Stock NotInStock
- SKU: 9762 | DAI498
-
Rs.
212.40 (inc GST)
Rs.180.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LM13700 Dual Operational Transconductance Amplifier IC
LM13700 Dual Operational Transconductance Amplifier IC
The LM13700 stands as an integrated circuit comprising two current-controlled operational transconductance amplifiers (OTAs), each featuring differential inputs and a push-pull output. Differing from a standard op-amp, an OTA operates with voltage in and current out, and its behavior can be programmed via the IABC pin. Linearizing diodes at the input serve to minimize distortion and enable higher input levels. Specifically engineered darlington output buffers complement the OTA’s wide dynamic range.
DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of LM13700 Dual Operational Transconductance Amplifier IC
- Low Power Consumption
- High Reliability
- High Performance
- Standard Packaging
- Miniaturization
Specifications of LM13700 Dual Operational Transconductance Amplifier IC
- Number of channels: 2
- Total supply voltage (max): 36V
- Total supply voltage (min): 10V
- Operating temperature range: 0 to 70°C
- Gain-Bandwidth Product (GBW): 2 MHz
Applications of LM13700 Dual Operational Transconductance Amplifier IC
- Oscillators
- Multipliers and modulators
- Audio compressors and limiters
Package Includes
1 x LM13700 Dual Operational Transconductance Amplifier IC
