Product Images are shown for illustrative purposes only and may differ from actual product.

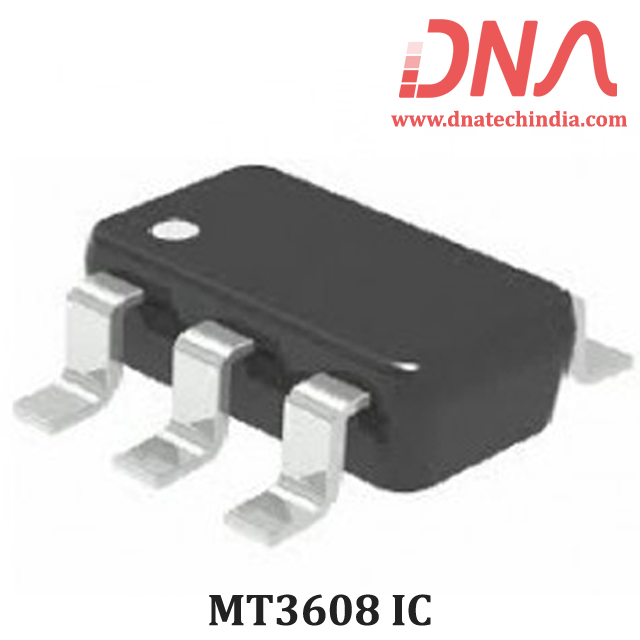

MT3608 DC to DC Step up Boost IC
- Stock: 500
- SKU: 2427 | DAC257
-
Rs. 27.14 (inc GST)
Rs.23.00 + GSTQty :
-
Quantity Pricing (inc GST)
10 + 25.02 25 + 23.01 50 + 21.12
| Also Available: Nextion Intelligent NX1060P101-011R-I 10.1" Resistive TouchScreen Display in Stock – in stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MT3608 DC to DC Boost IC
MT3608 Boost IC; Converts 2V to 24V input to 5V to 28V output; 97% efficiency.
The MT3608 DC to DC Boost IC is designed for low power applications. It efficiently boosts input voltages from 2V to 24V to an adjustable output of 5V to 28V. With a fixed switching frequency of 1.2MHz, it uses compact components, maintaining a height of 2mm or less. This module features an internal soft-start to minimize inrush current, enhancing battery life.
The MT3608 DC to DC Boost IC includes essential protections like under-voltage lockout and thermal overload protection. It ensures safe operation even under output overload conditions. With a maximum switch current limit of 4A, it achieves up to 97% efficiency, making it suitable for a variety of applications.
Common applications for the MT3608 DC to DC Boost IC include battery-powered equipment, set-top boxes, and networking devices. This module is ideal for those needing reliable voltage boost solutions in compact designs.
Explore the reliability of MT3608 from DNA, a trusted name in DC to DC Converter Modules. Check other DC to DC Converter Modules that we have in stock.
If you are an Indian electronics buyer looking for specific parts, reach out to us. We can import items not in stock and support you with retail and bulk orders. Check our selection of related components like Sensors, Relays, Diodes, and more. Contact Us
Features of MT3608 DC to DC Boost IC
- Integrated 80mΩ Power MOSFET
- 2 Volts to 24 Volts Input Voltage
- 1.2MHz Fixed Switching Frequency
- Internal 4A Switch Current Limit
- Adjustable Output Voltage
- Internal Compensation
- Up to 28 Volts Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Up to 97% Efficiency
- Available in a 6-Pin SOT23-6 Package
Specification of MT3608 DC to DC Boost IC
- Input Voltage: 2V to 24V
- Output Voltage: 5V to 28V
- Switching Frequency: 1.2MHz
- Max Switch Current: 4A
- Efficiency: Up to 97%
- Package Type: SOT23-6
Applications of MT3608 DC to DC Boost IC
- Battery-Powered Equipment
- Set-Top Boxes
- LCD Bias Supply
- DSL and Cable Modems
- Networking Cards Powered from PCI or PCI Express Slots
Package Includes
- 1 X MT3608 DC to DC Boost IC
