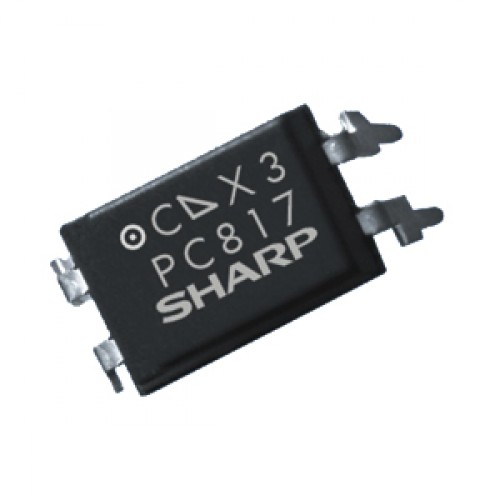

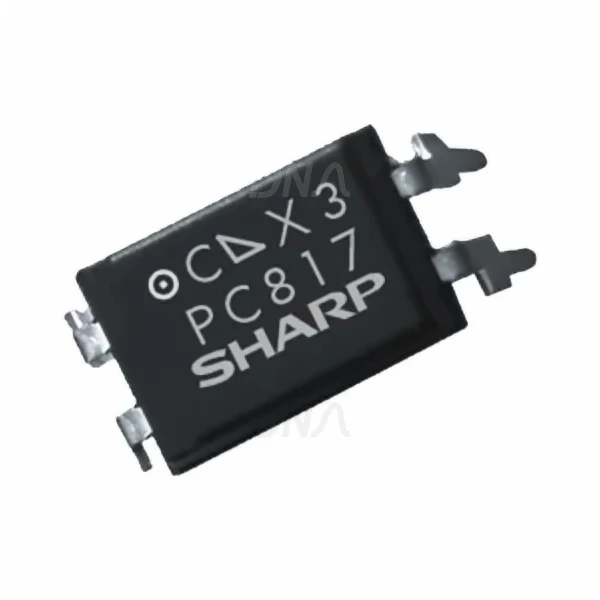

Product Images are shown for illustrative purposes only and may differ from actual product.

PC817 OPTOCOUPLER


Write a review | 0 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-05-13

  • SKU: 427 | DAA413

Availability: InStock priceValidUntil: 2026-05-13

  • Rs. 5.48 (inc GST)
    Rs.4.64 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PC817 OPTOCOUPLER

PC817 OPTOCOUPLER/Photocoupler

PC817 is a 4pin DIP General Purpose Photocoupler/Optocoupler. PC817 contains an IRED optically coupled to a phototransistor.It is packaged in a 4pin DIP. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.

Features of PC817 Optocoupler

  • 4 pin DIP package
  • Double transfer mold package (Ideal for Flow Soldering)
  • High collector-emitter voltage (VCEO:80V)
  • Current transfer ratio (CTR : MIN. 50% at IF=5 mA,VCE=5V)
  • Several CTR ranks available
  • High isolation voltage between input and output(Viso(rms) : 5.0 kV)
  • Lead-free and RoHS directive compliant

Application of PC817 Photocoupler

  • Computer terminals
  • System appliances, measuring instruments
  • Registers, copiers, automatic vending machines
  • Electric home appliances, such as fan, heaters, etc.
  • Medical instruments, physical and chemical equipment
  • Signal transmission between circuits of different potentials and impedances

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
