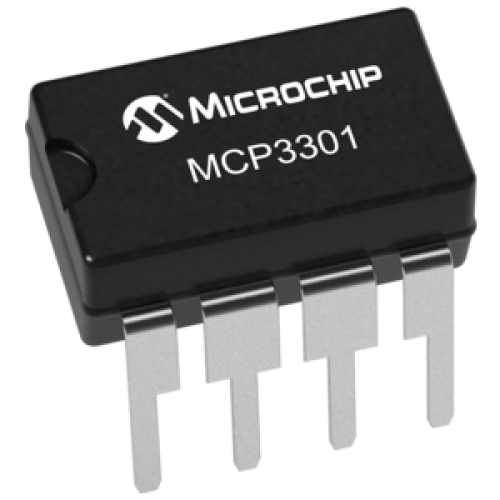

MCP3301 13-Bit Analog to Digital Convertor

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-29
SKU: 652 | DAA041

Rs. 401.20 (inc GST)
Rs.340.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MCP3301 13-bit Analog to Digital Converter

MCP3301 ADC - 13-bit resolution, SPI interface, low power consumption.

The MCP3301 13-bit Analog to Digital Converter excels in low power applications with a full differential input. It features an industry-standard SPI interface, making it compatible with various PICmicro® microcontrollers. This ADC operates at a sample rate of 100k samples per second, ideal for remote data acquisition and portable instrumentation.

The MCP3301 is designed for battery-powered systems, with typical standby power consumption at 300 nA and a maximum active current of 450µA. Its temperature range from -40 to +85°C ensures reliability in diverse conditions. This component is available in multiple packages, including 8-pin PDIP, SOIC, and MSOP.

Whether you are working on instrumentation or data logging, the MCP3301 13-bit Analog to Digital Converter provides precision and efficiency. Explore its capabilities for your next project that requires accurate data conversion and minimal power use.

At DNA, we offer high-quality ADC & DAC components from trusted manufacturers like Microchip. Discover the MCP3301 13-bit ADC and enhance your projects. Check other ADC & DAC that we have in stock.

Indian electronics buyers, if you need specific components, reach out to us. We can import hard-to-find parts and support you in retail and bulk orders. Explore our range including Digital ICs, Development Modules, Inductors, and more. Contact Us.

Features of MCP3301 13-bit Analog to Digital Converter

13-bit resolution
Differential input
SPI interface
±1 LSB DNL
±1 LSB INL
100 ksps sample rate
-40 to +85°C temperature range
AEC-Q100 Grade 3

Specification of MCP3301 13-bit Analog to Digital Converter

Input Voltage Range 4.5V to 5.5V
1 input channel
Low power consumption (300 nA standby, 450µA active)

Applications of MCP3301 13-bit Analog to Digital Converter

Remote data acquisition
Portable instrumentation
Battery-operated applications
Data logging systems

Package Includes

1 X MCP3301 13-bit Analog to Digital Converter

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
