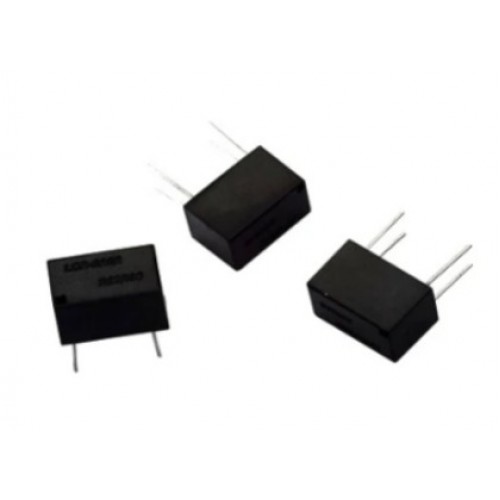

LCR 0202 Analog Optocoupler

LCR 0202 Analog Optocoupler

LCR-0202 Analog Optocoupler for audio applications with low distortion and high linearity, ideal for analog signal processing.

The LCR 0202 Analog Optocoupler is designed for precise control in audio applications. This optoelectronic device utilizes current changes to regulate resistance, ensuring high linearity for accurate analog signal transmission. With a bandwidth of up to 100 kHz, it is suitable for both DC and AC circuits, making it versatile in various electronic setups. The LCR 0202 Analog Optocoupler features an input-output isolation, minimizing distortion and enhancing performance in data acquisition systems and industrial automation.

Constructed in a DIP-4 package, the LCR 0202 Analog Optocoupler is compact and efficient. It operates efficiently across a wide range of input current (0-20mA) and voltage (1.6-2.5Vdc), with a low resistance output for improved signal clarity. Its applications extend to medical devices and audio power amplifier protection, making it a reliable choice for engineers and developers.

Explore the capabilities of the LCR 0202 Analog Optocoupler in your projects. With its simple circuit configuration and high-frequency capability, it is an excellent addition to any electronics toolkit, ensuring optimal performance in analog signal processing.

Discover reliable OptoCouplers & OptoIsolators from DNA. The LCR 0202 Analog Optocoupler is essential for precise signal control. Check other OptoCouplers & OptoIsolators that we have in stock.

Are you searching for other electronic components? At DNA, we can help you find Digital ICs, DC to DC Converter ICs, Connectors, Nextion Displays, Capacitors, and LCDs. If you can't find what you need, contact us for assistance. We can import specific parts and support both retail and bulk orders.

Features of LCR 0202 Analog Optocoupler

• Pure resistor output
• Wide analog linear resistance range
• Input-output isolation
• Low distortion coupling
• High linearity for accurate signal transmission
• Wide bandwidth for high-frequency signals

Specification of LCR 0202 Analog Optocoupler

• Type: LCR-0202 Series
• Package: DIP-4
• Input current: 0-20mA
• Input Voltage: 1.6-2.5Vdc
• Output Light Resistance: 50Ω – 1KΩ @20mA- 0.01mA
• Output Dark Resistance: 1Ω – 10MΩ @10 seconds off later
• Bandwidth: Up to 100 kHz (typical)

Applications of LCR 0202 Analog Optocoupler

• Audio power amplifier protection
• Analog signal processing
• Data acquisition systems
• Medical devices
• Industrial automation

Related Links for LCR 0202 Analog Optocoupler

• Other Products from OptoCouplers & OptoIsolators Category

Package Includes

• 1 X LCR 0202 Analog Optocoupler
