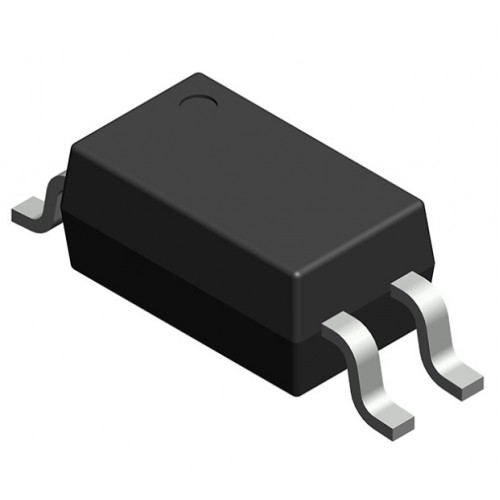

Product Images are shown for illustrative purposes only and may differ from actual product.
PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
- Stock: 10
- SKU: 8169 | DAH748
-
Rs. 41.93 (inc GST)
Rs.35.53 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
The PS2705A-1-F3-A is an optoisolator that contains a phototransistor and an LED, housed in a compact 4-pin SMD (Surface Mount Device) package. The optoisolator is characterized by its high isolation voltage (3.75kV), which means it can effectively isolate high-voltage circuits from low-voltage circuits, ensuring safety and signal integrity. The transistor output allows for a quick and reliable response to input signals, making it ideal for digital switching and control applications.
DNA solutions, Nashik has various types of Optoisolator IC's. Check out our complete collection of Optoisolator IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
- High Isolation Voltage: 3.75kV (AC peak), offering robust isolation to protect downstream circuitry from electrical surges and noise
- Optical Isolation: Provides electrical isolation between input and output, protecting sensitive systems from transient voltages
- Phototransistor Output: The output is a phototransistor, making it easy to interface with logic circuits and microcontrollers
- Low Input Current: The device is optimized for low current operation, requiring minimal power for operation
- Compact SMD Package: The 4-pin SMD package is ideal for surface-mount technology, allowing for compact designs and automated assembly processes
Specifications of PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
- Optoisolator Type: Phototransistor output
- Input LED Forward Voltage: Typically 1.2V, max 1.4V
- Output Collector-Emitter Voltage: 80V max
- Isolation Voltage: 3750V (AC peak)
- Operating Temperature Range: -55°C to +100°C
- Package Type: 4-pin SMD
- Output Type: NPN transistor
- Storage Temperature Range: -55°C to +125°C
Applications of PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
- Signal Isolation
- Microcontroller Interfacing
- Switching Power Supplies
- Communication Systems
- Data Acquisition Systems
Package Includes
1 x PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
