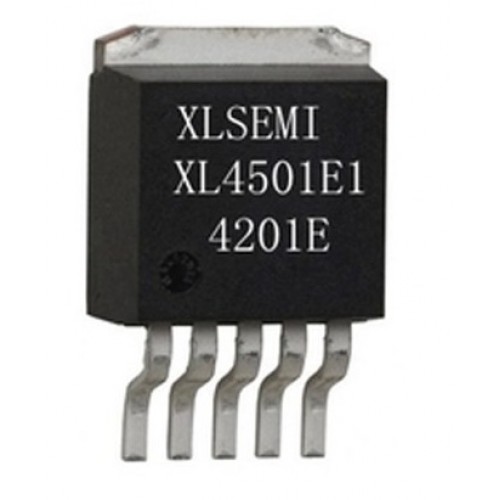

Product Images are shown for illustrative purposes only and may differ from actual product.

XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop

  • Stock: 35

    Availability: InStock priceValidUntil: 2026-12-18

  • Brand: XL Semi
  • SKU: 1670 | DAB691

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 96.76 (inc GST)
    Rs.82.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop

XL4501E1 PWM buck converter with constant-current control, 8–36 V input, adjustable 1.25–32 V output and 150 kHz nominal switching.

The XLSEMI XL4501E1 is a PWM buck DC/DC converter with an adjustable output and an output constant-current loop. It accepts an 8 V to 36 V input and supports output settings from 1.25 V to 32 V. This makes it suited to designs that need a regulated step-down supply or controlled current from a DC input.
Its integrated power MOSFET, oscillator and frequency compensation reduce the number of external parts. The fixed-frequency control supports predictable switching design, while built-in current limiting, overcurrent protection and thermal shutdown help manage fault conditions. An external sense resistor sets the constant-current level, giving designers control over load current. The TO263-5L package supports board-level power conversion in charger, lighting and display systems.
Use the XL4501E1 in car and battery chargers, portable instrument supplies, LCD monitors and TVs, telecom equipment, or LED lighting. Its voltage and current regulation combine in one IC for power and constant-current designs.
DNA supplies XLSEMI components for Indian engineers and buyers seeking Voltage Regulators for new designs and repairs. Compare this converter with other options for your power needs. Check other Voltage Regulators that we have in stock
If you cannot find a required component, contact DNA for help with sourcing and import support across India. We support retail and bulk orders for items such as DC to DC Converter ICs, diodes and transistors. Contact Us

Features of XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop

  • Integrated power MOSFET
  • Internal frequency compensation and oscillator reduce external circuitry
  • Constant-current loop uses an external sense resistor
  • Built-in current limiting, overcurrent protection and thermal shutdown
  • PWM control supports a wide duty-ratio adjustment

Specifications of XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop

  • Input operating voltage: 8 V to 36 V
  • Adjustable output voltage: 1.25 V to 32 V
  • Maximum switching current: 5 A
  • Load capability: 4.5 A
  • Switching frequency: 150 kHz nominal, 127 kHz minimum and 172 kHz maximum
  • Minimum dropout voltage: 0.3 V
  • Package: TO263-5L, 5-pin
  • Operating junction temperature: −40 °C to 125 °C

Applications of XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop

  • Car chargers
  • Battery chargers
  • LCD monitors and LCD TVs
  • General-purpose LED lighting

Related Links for XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop

Package Includes

  • 1 X XLSEMI XL4501E1 PWM Buck DC/DC Converter with Constant-Current Loop
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
