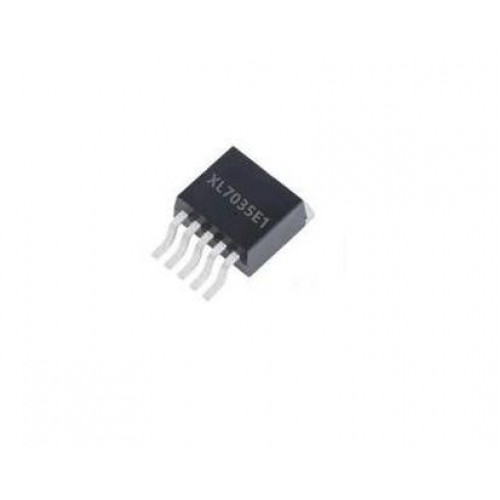

XL7035 DC to DC Step down Converter IC

The XL7045 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.3 Ampere load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When output short protection function happens, the operation frequency will be reduced from 100KHz to 15KHz. An internal compensation block is built in to minimize external component count.

The main advantage of using XL7035 step down DC to DC converter is its input voltage range which is from 12 volts to 80 volts.

Features of XL7035 DC to DC converter IC

• Wide 10 Volts to 80 Volts Operation Voltage

• Output Adjustable from 1.25 Volts to 20 Volts

• Maximum Duty Cycle 100%

• Minimum Drop Out 1 Volts

• Fixed 100 KHz Switching Frequency

• Max. Iout=0.3 Ampere at Vout=5 Volts

• Max. Iout=0.2 Ampere at Vout=12 Volts or 15 Volts

• Internal Optimize High Voltage Power Transistor

• High efficiency up to 84%

• Excellent line and load regulation

• Built in thermal shutdown function

• Built in current limit function

• Built in output short Protection Function

• SOP8-EP (Exposed PAD) package

Applications  of XL7035 IC

• Ebike Controller Power Supply

• Telecom / Networking Equipment
