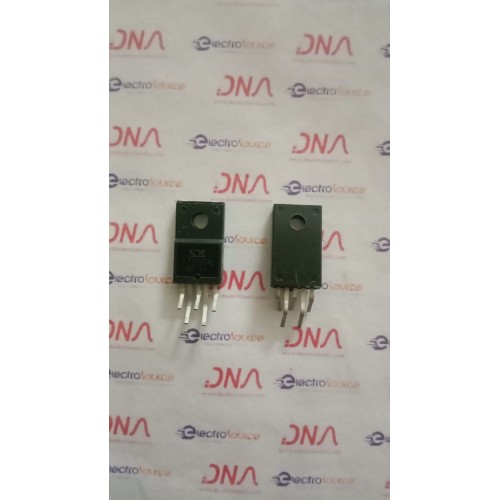

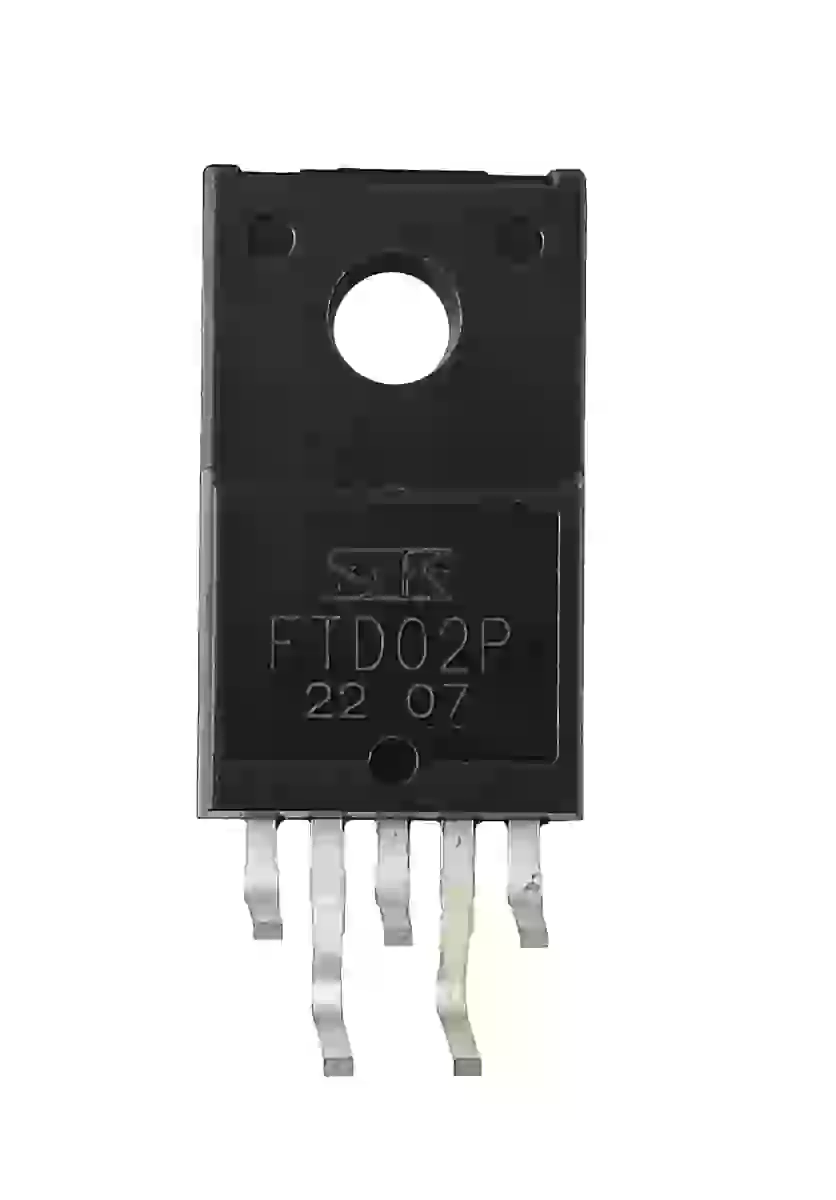

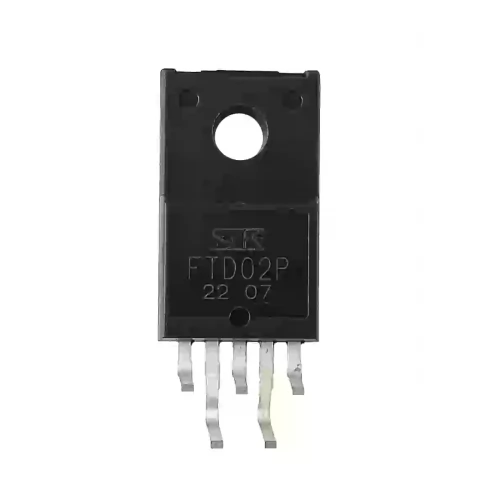

FTD02P P‑Channel IGBT TO‑220F Package

FTD02P: High‑Voltage P‑Channel Transistor for Precision Motor & Power Supply Circuits

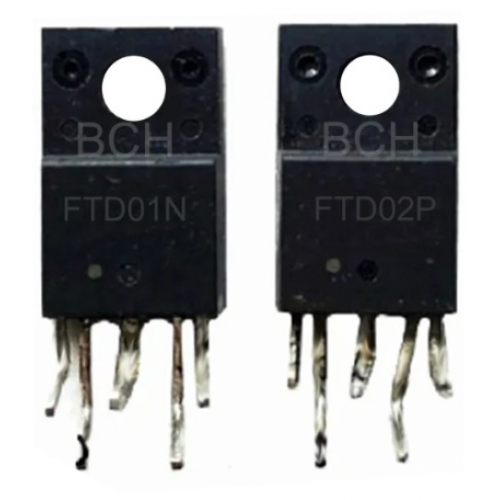

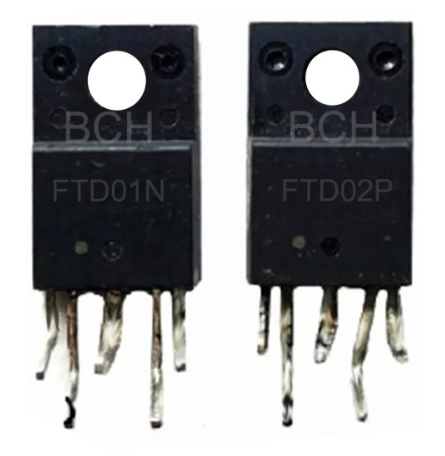

The FTD02P is a high‑voltage P‑Channel IGBT optimized for power switching in printer motor and power stage circuits. Paired frequently with its N‑Channel complement (FTD01N), the FTD02P provides fast switching capability, reliable avalanche performance, and low gate drive requirements. It supports high‑voltage operation (600 V class) and is housed in a TO‑220F package, enabling effective heat dissipation in compact printer designs and embedded control boards.

DNA is a trusted supplier of MOSFETs and power transistors in India, offering retail and bulk purchase options. We stock popular electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.

Can’t find the exact transistor or Electronic Component? Our team can help you source it,  click here to contact us.

Features of FTD02P Transistor

• P‑Channel high‑voltage switching device
• 600 V blocking voltage class
• Optimized for H‑bridge and motor control circuits
• Low gate charge for fast switching
• Fully avalanche tested for robust operation
• Compact TO‑220F package for efficient thermal management

Specifications of FTD02P Transistor

• Transistor Type: P‑Channel IGBT
• Blocking Voltage: 600 V
• Typical Gate Charge: ~5 nC (approx.)
• Package: TO‑220F
• Application Class: Power switching, printer circuits

Applications of FTD02P Transistor

• Inkjet printer board motor drivers (Epson series)
• Switching regulators and bridge circuits
• General-purpose embedded power applications
• Consumer electronics requiring compact high‑voltage switching

Related Links

• FTD02P Datasheet (PDF)
• Browse More MOSFETs & IGBTs

Package Include

• 1 × FTD02P P‑Channel IGBT (TO‑220F)
