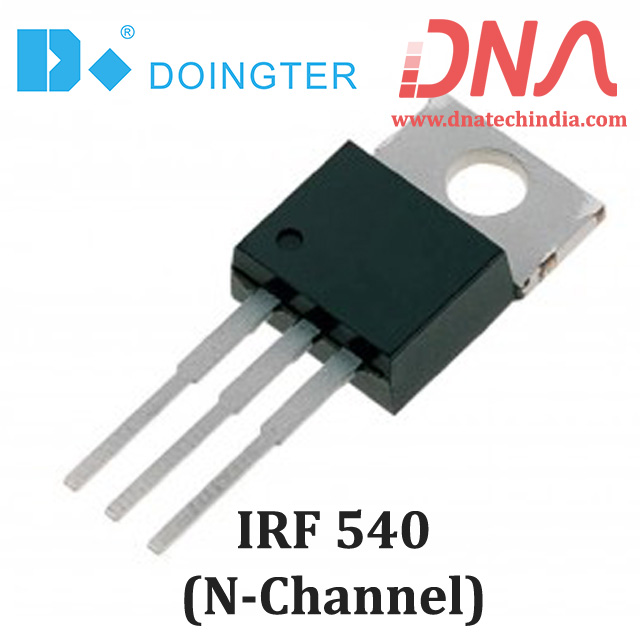

IRF540 N-Channel MOSFET (Doingter)


Write a review | 0 reviews

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-07-12

  • Brand: Doingter
  • SKU: 2841 | DAE490

Availability: InStock priceValidUntil: 2026-07-12

  • Rs. 26.08 (inc GST)
    Rs.22.10 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Doingter IRF540 N-Channel Power MOSFET

IRF540 N Channel Power MOSFET - 100V, 22A, TO-220 Package with low on-resistance and fast switching.

The Doingter IRF540 N-Channel Power MOSFET is a reliable component designed for high-performance applications. With a voltage rating of 100 volts and a continuous current rating of 22 amperes, this MOSFET is ideal for commercial and industrial use. Its TO-220 package enables efficient heat dissipation, making it suitable for power dissipation levels up to 50 watts. The IRF540 provides excellent thermal resistance and cost-effectiveness, ensuring it meets the demands of various designs.

Engineered with advanced process technology, the Doingter IRF540 N-Channel Power MOSFET supports fast switching speeds and easy paralleling. It operates effectively at temperatures up to 175°C. This makes it a preferred choice for engineers seeking performance without compromising on quality. Its simple drive requirements further enhance its usability in diverse applications.

Whether you are working on power management or motor drive solutions, the IRF540 is an essential component. Explore our range of MOSFETs and IGBTs at DNA Solutions for more options tailored to your needs.

Explore the best in MOSFET & IGBT components at DNA Solutions. The Doingter brand delivers quality and reliability. Check other MOSFET & IGBT that we have in stock.

At DNA, we cater to all your electronic component needs. If you’re looking for specific parts or need bulk orders, we can help. From Microcontrollers to MOSFETs, reach out to us for support. Contact Us.

Features of Doingter IRF540 N-Channel Power MOSFET

  • Dynamic dv/dt Rating
  • Advanced Process Technology
  • 175°C Operating Temperature
  • Fast Switching
  • Ease of Paralleling
  • Simple Drive Requirements

Specification of Doingter IRF540 N-Channel Power MOSFET

  • ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 28 Ampere
  • ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 20 Ampere
  • IDM Pulsed Drain Current 110 Ampere
  • PD @TC = 25°C Power Dissipation 150 Watt
  • Linear Derating Factor 1.0 W/°C
  • VGS Gate-to-Source Voltage ± 20 V

Applications of Doingter IRF540 N-Channel Power MOSFET

  • Power management
  • Motor drives
  • Switching power supplies
  • Industrial automation
  • Consumer electronics

Related Links for Doingter IRF540 N-Channel Power MOSFET

Package Includes

  • 1 X Doingter IRF540 N-Channel Power MOSFET
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
