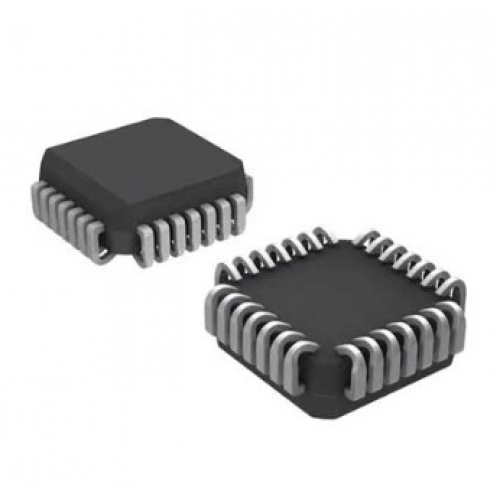

Product Images are shown for illustrative purposes only and may differ from actual product.

GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • SKU: 9792 | DAI565

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 405.07 (inc GST)
    Rs.343.28 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC

GAL16V8D 3LJ PLD IC with E2CMOS tech, 10ns speed, and low power usage.

The GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC is designed for high-performance digital logic applications. This versatile programmable logic device uses E2CMOS technology for reprogrammable non-volatile memory, ensuring stable performance and fast switching speeds. It is ideal for complex logic functions and is pin-compatible with standard 20-pin DIP and PLCC packages. With a low power CMOS design, it supports energy-efficient operations.
This product is perfect for applications such as custom logic circuits, address decoding in microprocessor systems, and state machine designs. The GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC delivers reliable performance in programmable control systems. Explore how this IC can enhance your projects with its quick propagation delay of 10ns and support for both combinational and registered outputs.
For Indian customers, DNA Solutions in Nashik offers this component both online and at our local shop. The GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC is your go-to choice for robust logic implementation.
Discover how the GAL16V8D 3LJ from leading manufacturers can meet your needs in the Memory IC's category. At DNA Solutions, we provide a wide range of Memory IC's. Check other Memory IC's that we have in stock.
If you need more electronic components, reach out to us. We can assist you in finding parts, including Power Supply, Digital IC, Programmer, Inductor, and more. We can also import items if they are not readily available. Contact Us

Features of GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC

  • Reprogrammable E2CMOS technology for non-volatile memory
  • High speed logic implementation up to 10ns
  • Pin-compatible with standard 20-pin DIP and PLCC
  • Low power CMOS design for energy efficiency
  • Supports combinational and registered outputs

Specification of GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC

  • Technology: E2CMOS
  • Number of Inputs: 10
  • Number of Outputs: 8 (combinational or registered)
  • Package: DIP-20 or PLCC-20
  • Propagation Delay: 10ns typical

Applications of GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC

  • Custom logic circuits
  • Address decoding in microprocessor systems
  • State machine designs
  • Programmable control systems

Package Includes

  • 1 X GAL16V8D 3LJ High Performance E2CMOS PLD Generic Array Logic IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
