• GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

Product Images are shown for illustrative purposes only and may differ from actual product.

GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

  • Stock: 5
  • SKU: 3764 | DAG077
  • Rs. 2,242.40 (inc GST)
    Rs.1,900.34 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

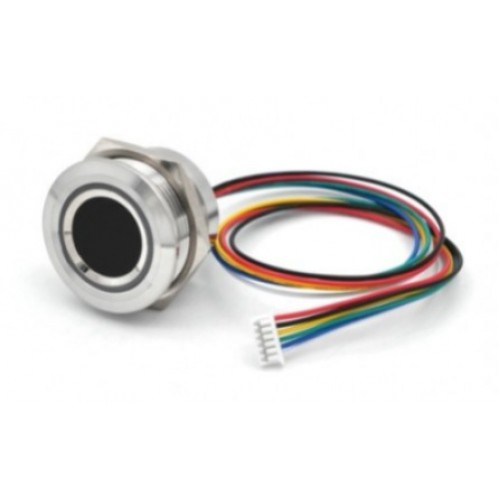

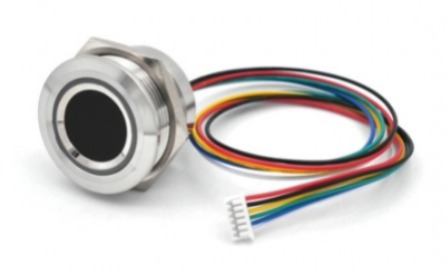

GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

This is an GROW R503-5V UART Capacitive Fingerprint Sensor Module, Which make by Hangzhou Grow technology Co., Ltd. The Grow R503-5V fingerprint sensor module comes with UART interface, IP65 Water Proof Rating and 200 finger capacity. The R503-5V (M25) is equipped with an optical fingerprint sensor that offers a high level of accuracy and robustness. It has a built-in microcontroller that handles fingerprint acquisition, processing, and matching, making it a self-contained biometric solution. This module supports communication via UART (TTL level) and can store fingerprint templates directly, offering convenient and efficient fingerprint enrollment and verification processes.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of  Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

  • Classification : Fingerprint Module
  • Interface : UART
  • Voltage : DC5V
  • Effective Collection Area : 15mm
  • Sensor Array : 192x192 pixel
  • Resolution : 508dpi
  • Fingerprint Capacity : 200

Specifications of GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

  • Interface:RS232 (TTL)
  • Resolution:508 DPI
  • Voltage: DC 5V
  • Working current(Fingerprint acquisition):20mA
  • Standby current(finger detection): Typical touch standby voltage: 3.3V, Average current: 2uA
  • Fingerprint capacity:200
  • Sensing Array:192*192 pixel
  • Fingerprint module external size: diameter 28mm
  • Fingerprint module inner size: diameter 25mm(M25)
  • Fingerprint module height: 19mm
  • Effective collection area: diameter 15mm

    Package Includes

    • 1 x GROW R503-5V UART (M25) LED Control Capacitive Fingerprint Sensor Module

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
