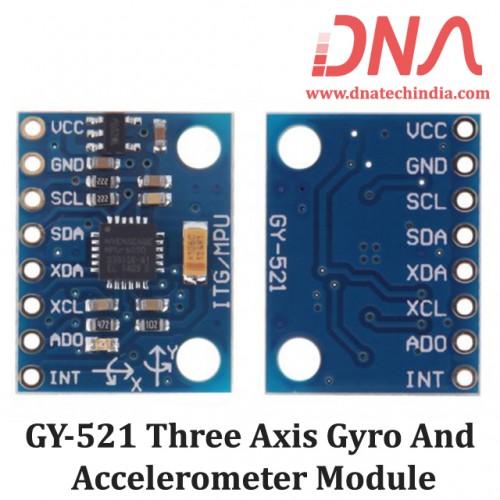

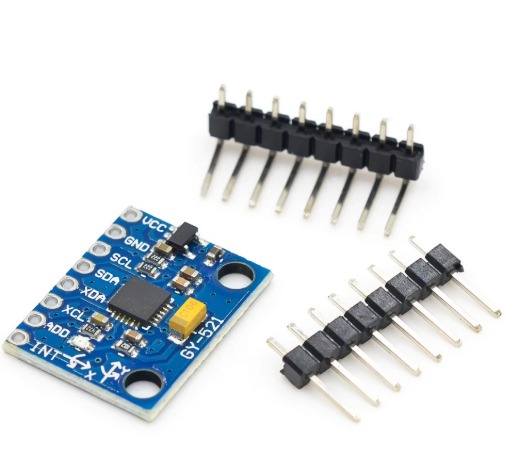

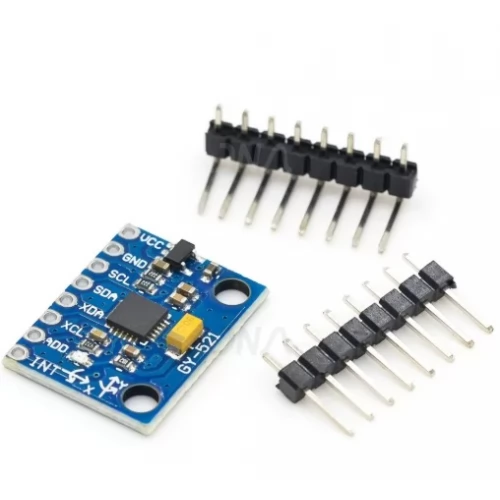

GY-521 Three Axis Gyro & Accelerometer Module

The GY-521 Three Axis Gyroscope & Accelerometer Module based on MPU6050 Sensor

The GY-521 Three Axis Gyroscope & Accelerometer Module based on MPU6050 Sensor is a serious little piece of motion processing technology! By combining a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis Motion Fusion algorithms, the MPU-6050 Sensor does away with the cross-axis alignment problems that can creep up on discrete parts. This is a neat little breakout board for the MPU-6050 with a on-board Voltage regulator so it can be used with 5 volt supply.

Specifications of GY-521 Three Axis Gyro + Three Axis Accelerometer

• GY-521 module (Three Axis Gyroscope + Three Axis Accelerometer Sensor)

• Chip used : MPU 6050

• Power supply : 3-5 v (internal low voltage difference voltage stabilizing)

• Communication : standard IIC communication agreement

• Chip In-built 16 bit AD converter, 16 bits of data output

• The gyroscope range : + 250 500 1000 2000 degree /sec Acceleration range: ± 2g ± 4g ± 8g ± 16 g

• Net weight : 3 g

• Package weight : 13 g

• The MPU-6050 is a high precision piece of motion processing tech.

• By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an on board Digital Motion Processor™ (DMP™) capable of processing complex 9-axis Motion Fusion algorithms

• MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.

• Auxiliary master I2C bus which allows the MPU-6050 to access external magnetometers and other sensors.
