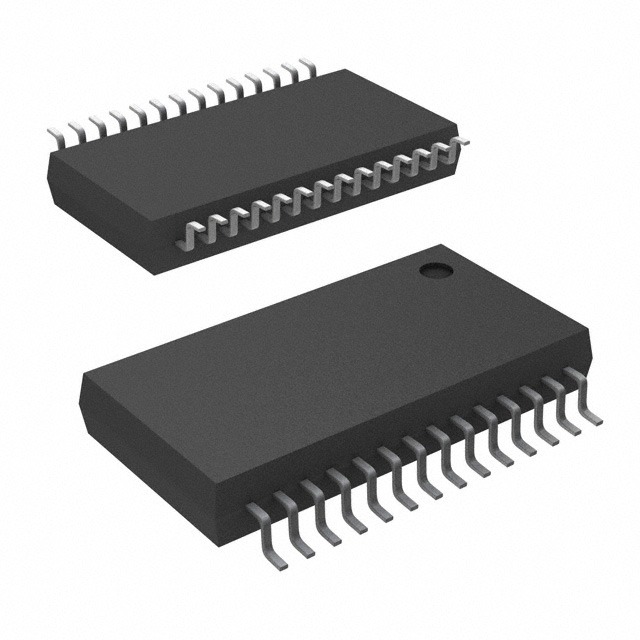

ADS1256IDBR SSOP-28, 24-Bit Analog-to-Digital Converter IC

ADS1256IDBR 24-Bit Analog-to-Digital Converter IC

ADS1256IDBR, 24-Bit ADC, features low-noise PGA, programmable filter, and high-resolution measurement up to 30k SPS.

The ADS1256IDBR 24-Bit Analog-to-Digital Converter IC offers exceptional performance for various applications. With a 4th-order delta-sigma modulator, it achieves up to 23 bits of noise-free resolution. This ADC is ideal for scientific instrumentation, industrial control, and medical equipment. Its low-noise programmable gain amplifier (PGA) provides gains from 1 to 64, ensuring accurate signal amplification. The ADS1256IDBR also features a flexible input multiplexer for both differential and single-ended signals.

Designed for precision, the ADS1256IDBR supports fast channel cycling and one-shot conversions. The programmable filter optimizes performance between resolution and data rate, making it suitable for demanding applications. Its self-calibration ensures reliable performance across all settings. Explore the potential of the ADS1256IDBR 24-Bit ADC for your next project.

At DNA, we offer a wide range of electronic components, including the ADS1256IDBR. Browse our collection for more options that meet your electronic needs. Experience the difference in quality and performance with our products.

Discover quality products in the ADC & DAC category at DNA. The ADS1256IDBR from a trusted manufacturer meets high standards for precision. Check other ADC & DAC that we have in stock.

If you are looking for specific electronic components, DNA can assist you. We can import parts that are not readily available. We support both retail and bulk orders. Consider related items like Humidity & Temperature Sensors, Analog ICs, and Development Boards. Contact Us.

Features of ADS1256IDBR 24-Bit Analog-to-Digital Converter IC

• 24 Bits, No Missing Codes
• Up to 23 Bits Noise-Free Resolution
• Fast Channel Cycling
• One-Shot Conversions
• Low-Noise PGA
• Self and System Calibration

Specification of ADS1256IDBR 24-Bit Analog-to-Digital Converter IC

• Sampling Rate: 30k SPS
• Supply Voltage: 2.7V to 5.25V
• Package Type: SSOP-28

Applications of ADS1256IDBR 24-Bit Analog-to-Digital Converter IC

• Scientific Instrumentation
• Industrial Process Control
• Medical Equipment
• Test and Measurement
• Weigh Scales

Package Includes

• 1 X ADS1256IDBR 24-Bit Analog-to-Digital Converter IC
