84 PIN PLCC IC SOCKET BROWN DIP 2.54MM

84 PIN PLCC IC SOCKET BROWN DIP 2.54MM

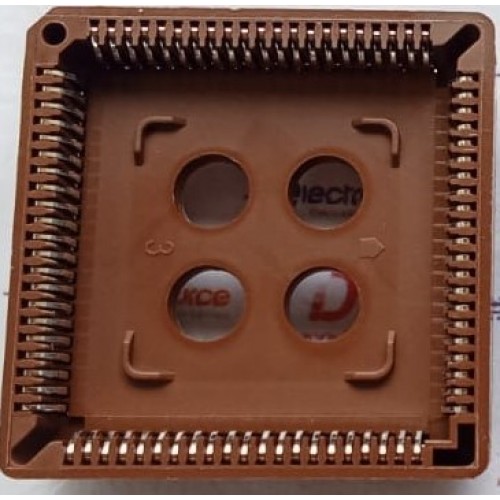

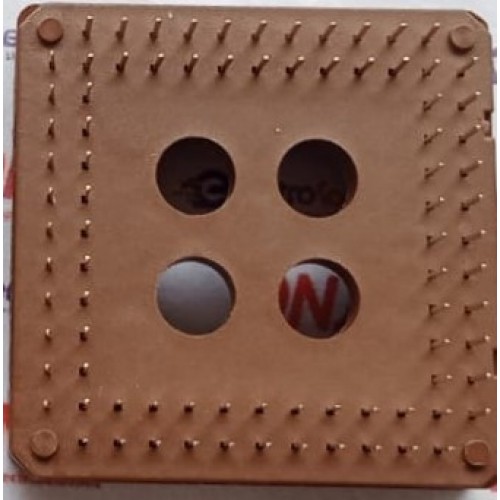

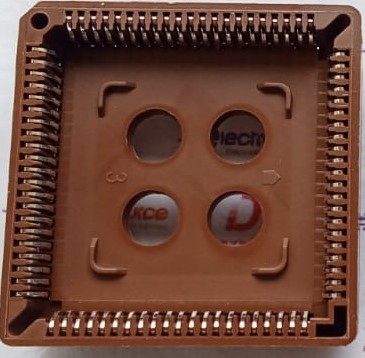

The 84-pin PLCC (Plastic Leaded Chip Carrier) socket is designed to securely house and interface with 84-pin PLCC ICs in prototyping or production environments. It features a standard 2.54mm (0.1 inch) DIP pin pitch suitable for through-hole mounting on PCBs. Made with high-temperature thermoplastic material (brown housing), this socket allows for reliable insertion and removal of ICs without soldering stress. It ensures firm contact with IC leads via gold or tin-plated spring contacts. Commonly used in microcontroller, memory, and programmable logic applications.

DNA solutions, Nashik has various types of Socket's. Check out our complete collection of Socket's.

• Compatible with 84-pin PLCC IC packages

• DIP configuration with 2.54mm pin spacing

• Brown high-temperature thermoplastic housing

• Zero-insertion force-like secure spring contacts

• Excellent mechanical and electrical stability

Specifications of 84 PIN PLCC IC SOCKET BROWN DIP 2.54MM

• Number of Pins: 84

• Pin Pitch: 2.54 mm

• Mounting Type: Through-hole

• Socket Type: PLCC-Square outline

• Contact Plating: Gold or Tin

• Operating Temperature: -40°C to +125°C

Applications of 84 PIN PLCC IC SOCKET BROWN DIP 2.54MM

• Microcontrollers, EEPROM, and logic ICs

• Device programming and IC development

• Socketed IC replacements in repairable systems

• Burn-in testing and diagnostics

Package Includes

      1 x 84 PIN PLCC IC SOCKET BROWN DIP 2.54MM
