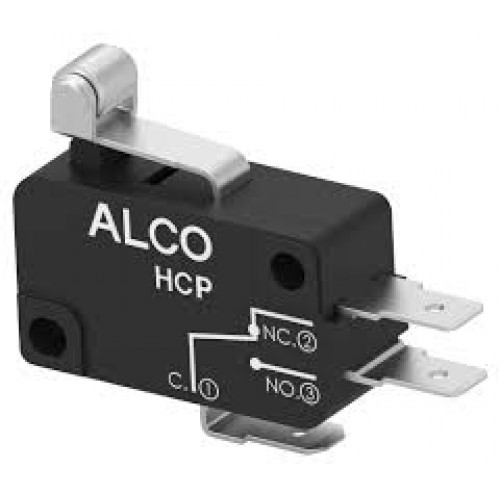

Product Images are shown for illustrative purposes only and may differ from actual product.

HCP16DTD5S04 MICROSWITCH


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-06

  • SKU: 7737 | DAH569

Availability: NotInStock priceValidUntil: 2026-11-06

  • Rs. 539.34 (inc GST)
    Rs.457.07 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HCP16DTD5S04 Microswitch

HCP16DTD5S04 Microswitch, SPDT configuration, 16A current rating, -40°C to +125°C operating temperature.

The HCP16DTD5S04 Microswitch is engineered for both domestic and industrial applications. It features a short roller lever actuator that enables efficient mechanical action. With a SPDT contact configuration, it provides versatile switching options suited for automation systems and industrial environments. This microswitch can handle up to 16A at 125/250 VAC and operates in a wide temperature range from -40°C to +125°C.

The HCP16DTD5S04 Microswitch is ideal for use in home appliances, security systems, and factory automation. Its robust design ensures reliability in demanding conditions, making it a valuable component in process control and automation tasks. The switch offers a release force of 25gf and a maximum operating force of 220g, ensuring precise control in various applications.

Explore the capabilities of the HCP16DTD5S04 Microswitch for your projects and enhance your automation solutions. This product stands out for its durability and efficiency, critical for modern electronic systems.

Explore a wide range of reliable Switches & Keypad at DNA. The TE Connectivity brand offers top-quality components for all your electronic projects. Check other Switches & Keypad that we have in stock.

If you need more electronic components, DNA is here to help. We can assist Indian electronics buyers in finding specific parts, and we also offer import options. Whether you're looking for Hongfa Relay, LCDs, inductors, or MOSFETs, we can support your needs in retail or bulk. Contact Us.

Features of HCP16DTD5S04 Microswitch

  • Short roller lever actuator
  • SPDT contact configuration
  • 16A current rating
  • Wide operating temperature range -40°C to +125°C
  • Reliable mechanical action

Specification of HCP16DTD5S04 Microswitch

  • Contact Current Rating: 16A (at 125/250V AC)
  • Voltage Rating: 125V/250V AC
  • Release Force: 25gf
  • Operating Force: 220g max

Applications of HCP16DTD5S04 Microswitch

  • Automation systems
  • Process control
  • Home appliances
  • Security systems
  • Industrial environments

Package Includes

  • 1 X HCP16DTD5S04 Microswitch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
