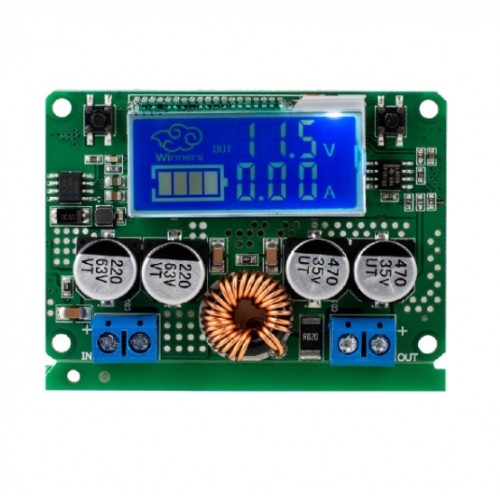

7A DC 60V Adjustable Step-Down Regulator NC Power Supply Module Current Voltage Meter LCD Display(With Case)

7A DC 60V Adjustable Step-Down Regulator NC Power Supply Module Current Voltage Meter LCD Display(With Case)

This 7A DC 60V Adjustable Step-Down Regulator NC Power Supply Module Current Voltage Meter LCD Display(With Case) digitally displays output voltage and current draw. This enables you to monitor how much current your device is drawing while it’s working with the correct voltage. This helps you determine what AC adapter will work with your project without overheating it. The down converter accepts a 60V AC/DC adapter, but we recommend a 36 VDC 5A 120-063 adapter since the output is up to 32 VDC. Built-in short circuit protection for safe voltage down conversion.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Input Voltage: 8-60V, please keep the balance, it is recommended to use within 55V

• Output voltage: 3V-32V continuously adjustable, automatically save the last set voltage (input voltage must be higher than the output voltage 1V above)

• Anti-anti-input: YES

• Short circuit protection: YES

• Accuracy: 1%, three voltage display, two current display, the unit is A

• Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current and pressure)

• Load regulation: S (I) ≤0.8%, voltage regulation: S (u) ≤0.8%

Specifications of 7A DC 60V Adjustable Step-Down Regulator NC Power Supply Module Current Voltage Meter LCD Display(With Case)

• Model Type: Power Supply Module

• Output Voltage (V): 3~32V adjustable

• Input Voltage (V): 8-60V

• Protection: Short circuit : YES

• Conversion efficiency: 0.95

• Load Regulation: 0.8% S(I)

• Voltage regulation (U): 0.008

Package Includes

      1 x 7A DC 60V Adjustable Step-Down Regulator NC Power Supply Module Current Voltage Meter LCD Display(With Case)
