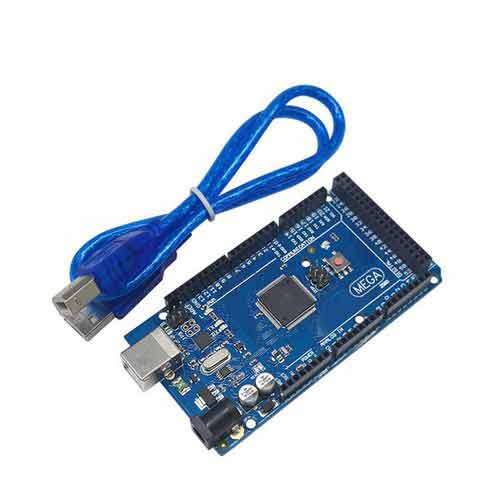

• Arduino Mega 2560 R3 Improved Version CH340G Board

Product Images are shown for illustrative purposes only and may differ from actual product.

Arduino Mega 2560 R3 Improved Version CH340G Board

  • Stock: 25
  • SKU: 3165 | DAD592
  • Rs. 2,041.40 (inc GST)
    Rs.1,730.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Arduino Mega 2560 R3 Improved Version CH340G Board

Arduino Mega 2560 R3 Improved Version CH340G Board

The ATmel MCU ATMEGA16U2 MEGA 2560 R3 Improved Version CH340G Board is a micro-controller board base on the ATmega2560. It has a USB host interface to connect with Android based phones, base on the MAX3421e IC. It has 54 digital input/output pins (of which 15 can be used as PWM outputs); 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator; a USB connection, a power jack, an ICSP header, and a reset button. The MEGA ADK is base on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega8U2 program as a USB-to-serial converter. Revision 3 of the Mega ADK board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU (Device Firmware Upgrade) mode.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification

  • Microcontroller: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 54 (of which 15 provide PWM output)
  • Analog Input Pins: 16
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 256 KB of which 8 KB used by bootloader
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz
  • USB Host Chip: MAX3421E
  • Length:101.98mm/4.01in
  • Width:53.63mm/2.11in
  • Height:15.29mm/0.60in

Application

  • Robotics, DIY Kit and Projects that require High Speed Processing.

Package Includes

1 x Arduino Mega 2560 R3 Improved Version CH340G Board

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
