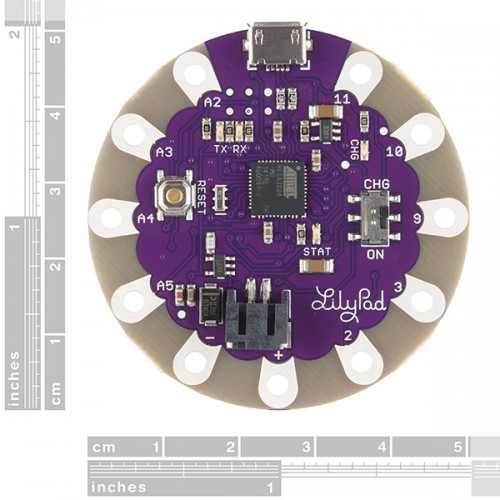

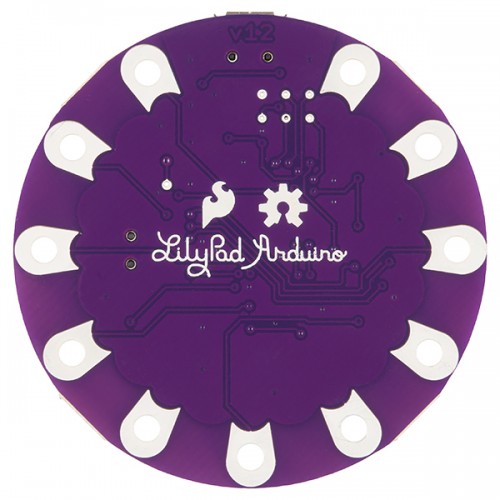

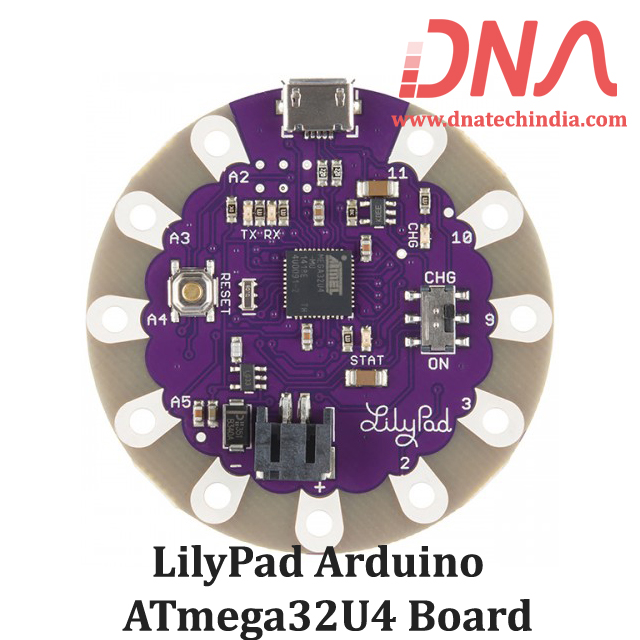

LilyPad Arduino USB - ATmega32U4 Board

The LilyPad Arduino USB is a microcontroller board based on the ATmega32u4.

It has 9 digital input/output pins (of which 4 can be used as PWM outputs and 4 as analog inputs), an 8 MHz resonator, a micro USB connection, a JST connector for a 3.7V LiPo battery, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a battery to get started.

The LilyPad Arduino USB differs from previous LilyPad boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a separate USB-to-serial adapter. This allows the LilyPad Arduino USB to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

We have Various sizes of Arduino Board. Check out our complete collection of Arduino Board.

Specifications of LilyPad Arduino USB - ATmega32U4 Board

• Microcontroller : ATmega32u4

• Operating Voltage : 3.3V

• Input Voltage : 3.8V-5V

• Digital I/O Pins : 9

• PWM Channels : 4

• Analog Input Channels : 4

• DC Current per I/O Pin : 40 mA

• Flash Memory : 32 KB (ATmega32u4) of which 4 KB used by bootloader

• SRAM : 2.5 KB (ATmega32u4)

• EEPROM 1 KB (ATmega32u4)

• Clock Speed : 8 MHz

Dimensions:

• Diameter : 2"
• Thickness : 1/32"

Package includes:

• 1 x LilyPad Arduino USB
