Product Images are shown for illustrative purposes only and may differ from actual product.

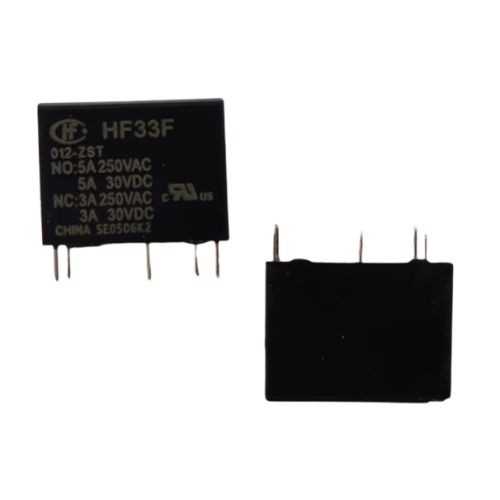

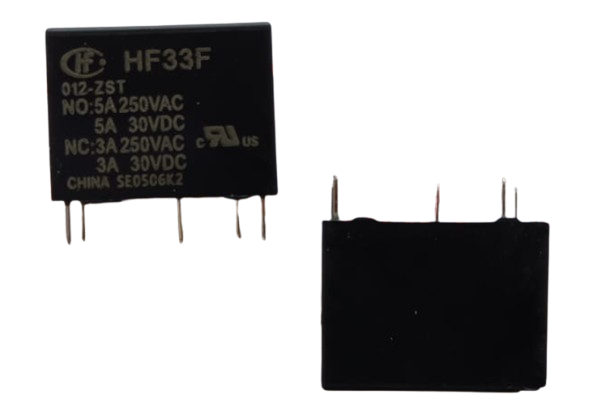

Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay

  • Stock: 500

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: Hongfa
  • SKU: 8220 | DAH648

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 115.64 (inc GST)
    Rs.98.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay

Hongfa HF33F/012-ZST is a 12 VDC SPDT PCB relay with AgSnO2 contacts and NO/NC resistive-load ratings of 5 A/3 A at 250 VAC or 30 VDC.

The Hongfa HF33F/012-ZST is a 12 VDC SPDT relay for switching a circuit between normally open and normally closed contacts. Its Form C design lets one relay handle either contact path. The plastic-sealed body and PCB terminals suit compact electronic assemblies.
The relay uses AgSnO2 contacts and has an 8 mm creepage distance between the coil and contacts. This separation supports insulation between the control side and switched circuit. The subminiature PCB relay format helps fit it into space-limited designs.
Use this relay in control panels and PLCs, air conditioners, security equipment and household appliances. Its changeover function can support control tasks where a circuit needs to switch between two contact states.
DNA stocks Hongfa components for electronics projects and production needs. Browse our Hongfa Relay range to find relay options for your design. Check other Hongfa Relay that we have in stock
For Indian electronics buyers, DNA can help source parts that are hard to find. Ask us about import support and retail or bulk orders. You can also enquire about HMI Display, Microcontroller, Sensor Module, IGBT, Inductor and MOSFET products. Contact Us

Features of Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay

  • Form C changeover design provides normally open and normally closed contacts
  • Plastic-sealed construction helps protect the relay body
  • PCB terminals support direct board mounting
  • AgSnO2 contact material suits the selected contact configuration
  • Class F insulation system
  • 8 mm creepage distance separates coil and contacts

Specifications of Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay

  • Coil nominal voltage: 12 VDC
  • Coil resistance: 320 Ω ±10% at 23°C
  • Pick-up voltage: 9 VDC max. for the 12 V nominal coil at 23°C
  • Contact arrangement: 1 Form C (SPDT), one normally open and one normally closed contact
  • Contact material: AgSnO2, specified by suffix T
  • Resistive-load contact rating: NO 5 A at 250 VAC or 30 VDC
  • Maximum switching voltage: 250 VAC or 30 VDC
  • Outline dimensions: 20.5 × 15.7 × 10.2 mm

Applications of Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay

  • Control panels
  • PLCs
  • Air conditioners
  • Security equipment

Related Links for Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay

Package Includes

  • 1 X Hongfa HF33F/012-ZST 12 VDC SPDT Subminiature Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
