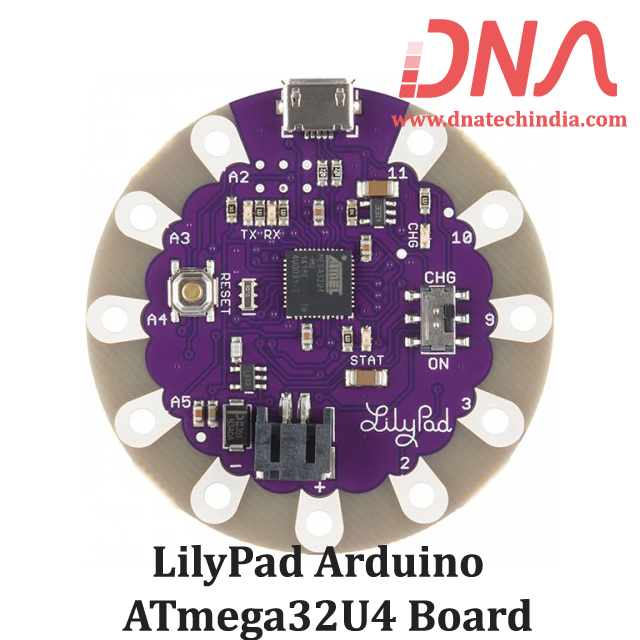

LilyPad Arduino USB - ATmega32U4 Board
The LilyPad Arduino USB is a microcontroller board based on the ATmega32u4.
It has 9 digital input/output pins (of which 4 can be used as PWM outputs and 4 as analog inputs), an 8 MHz resonator, a micro USB connection, a JST connector for a 3.7V LiPo battery, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a battery to get started.
The LilyPad Arduino USB differs from previous LilyPad boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a separate USB-to-serial adapter. This allows the LilyPad Arduino USB to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Specifications of LilyPad Arduino USB - ATmega32U4 Board
- Microcontroller : ATmega32u4
- Analog Input Channels : 4
- DC Current per I/O Pin : 40 mA
- Flash Memory : 32 KB (ATmega32u4) of which 4 KB used by bootloader
- SRAM : 2.5 KB (ATmega32u4)
- Diameter : 2"
- Thickness : 1/32"
