Product Images are shown for illustrative purposes only and may differ from actual product.

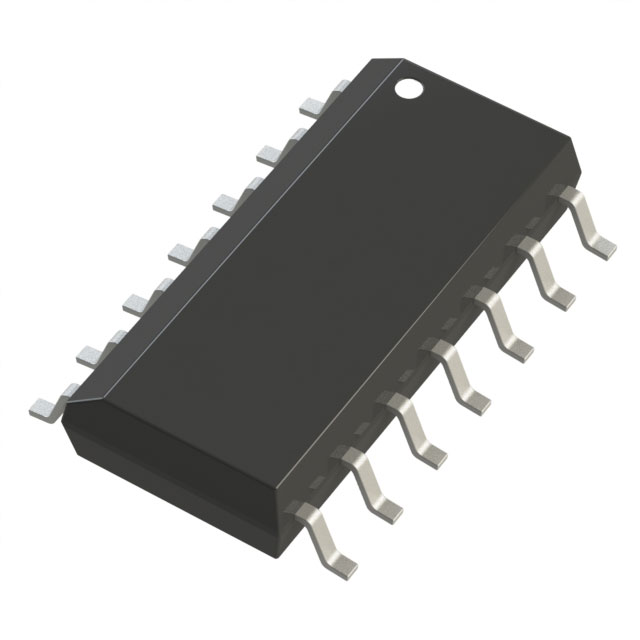

HEF40106BT Hex Inverting Schmitt Trigger SMD IC


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-15

  • SKU: 8876 | DAI215

Availability: NotInStock priceValidUntil: 2026-10-15

  • Rs. 41.30 (inc GST)
    Rs.35.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HEF40106BT Hex Inverting Schmitt Trigger SMD IC

HEF40106BT Hex Inverting Schmitt Trigger SMD IC with 14 pins, Schmitt trigger input, and fully static operation.

The HEF40106BT Hex Inverting Schmitt Trigger SMD IC offers six inverting buffers with unique Schmitt trigger circuits for enhanced noise immunity. This IC switches at different voltage levels, providing hysteresis voltage to ensure reliable signal processing. It is ideal for applications requiring precise waveform shaping and debouncing mechanical switches. The HEF40106BT is suitable for oscillators, pulse generators, and level detectors, making it a versatile component in electronic designs. Its fully static operation ensures consistent performance across various conditions, making it a dependable choice for engineers in India. Explore the Nexperia HEF40106BT for your next project and experience its robust functionality.

At DNA, we provide high-quality products like the Nexperia HEF40106BT in the 4000 Series IC's category. Explore our range of reliable 4000 Series IC's to find the perfect components for your electronic projects. Check other 4000 Series IC's that we have in stock.

Are you looking for specific electronic components? At DNA, we can help you find parts like Inductors, Development Modules, Analog ICs, and more. If you can’t find what you need, we can import it for you. Contact Us.

Features of HEF40106BT Hex Inverting Schmitt Trigger SMD IC

  • Schmitt trigger input discrimination
  • Fully static operation
  • Standardized symmetrical output characteristics

Specification of HEF40106BT Hex Inverting Schmitt Trigger SMD IC

  • IC Type: Gate IC
  • Gate IC Type: INVERT
  • Model Name: HEF40106BT
  • Input Type: Schmitt trigger input
  • Operating Mode: Fully static
  • No. of Pins: 14

Applications of HEF40106BT Hex Inverting Schmitt Trigger SMD IC

  • Waveform Shaping
  • Oscillators & Pulse Generators
  • Debouncing Mechanical Switches
  • Level Detectors
  • Analog-to-Digital Transition Helper

Related Links for HEF40106BT Hex Inverting Schmitt Trigger SMD IC

Package Includes

  • 1 X HEF40106BT Hex Inverting Schmitt Trigger SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
