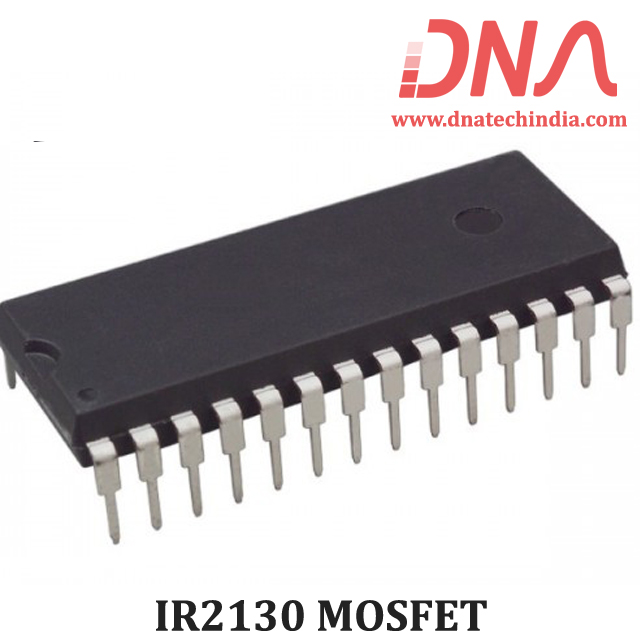

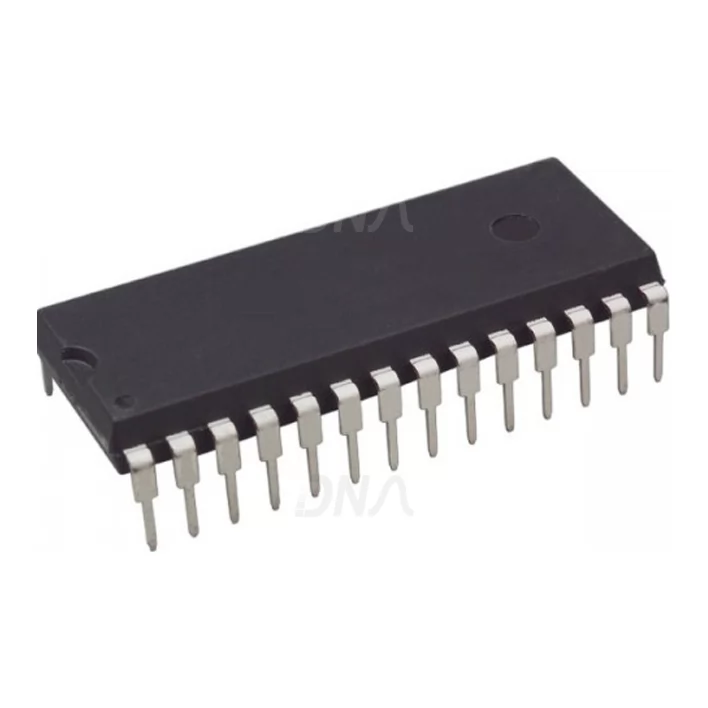

• IR2130 3-Phase Bridge Driver

Product Images are shown for illustrative purposes only and may differ from actual product.

IR2130 3-Phase Bridge Driver

  • Stock: 1
  • SKU: 0708 | DAA152
  • Rs. 743.40 (inc GST)
    Rs.630.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IR2130 3-Phase Bridge Driver

The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels.

Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. A ground-referenced operational amplifier provides analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs is also derived from this resistor. An open drain FAULT  signal indicates if an over-current or under voltage shutdown has occurred. The IR2130 output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use at high frequencies. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operate up to 600 volts.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features IR2130 3-Phase Bridge Driver

  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

  • Gate drive supply range from 10 to 20V

  • Under voltage lockout for all channels

  • Over-current shutdown turns off all six drivers

  • Independent half-bridge drivers

  • Matched propagation delay for all channels

  • 2.5V logic compatible

  • Outputs out of phase with inputs

  • Cross-conduction prevention logic

  • Also available LEAD-FREE
