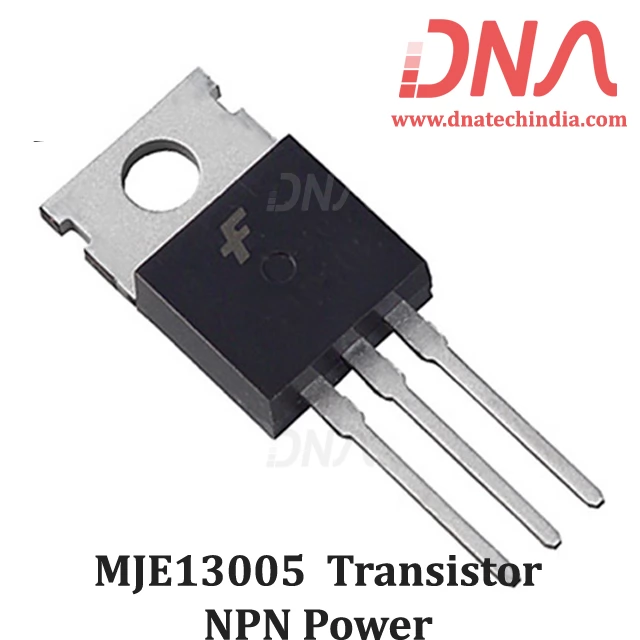

MJE13005 NPN Power Transistor

These devices are designed for high−voltage, high−speed power switching inductive circuits where fall time is critical.

MJE13005  Power Transistor are particularly suited for 115 and 220 V SWITCH-MODE applications such as Switching Regulator’s, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.

DNA Solutions has large collection of various types of Transistor. Check our complete collection of Transistor.

Features of MJE13005

• V_CEO(sus) 400 V

• Reverse Bias SOA with Inductive Loads @ TC = 100^oC

• Inductive Switching Matrix 2 to 4 A, 25 and 100^oC tc @ 3A, 100^oC is 180 ns (Typ)

• 700 V Blocking Capability

• SOA and Switching Applications Information

• These Devices are Pb−Free and are RoHS Compliant
