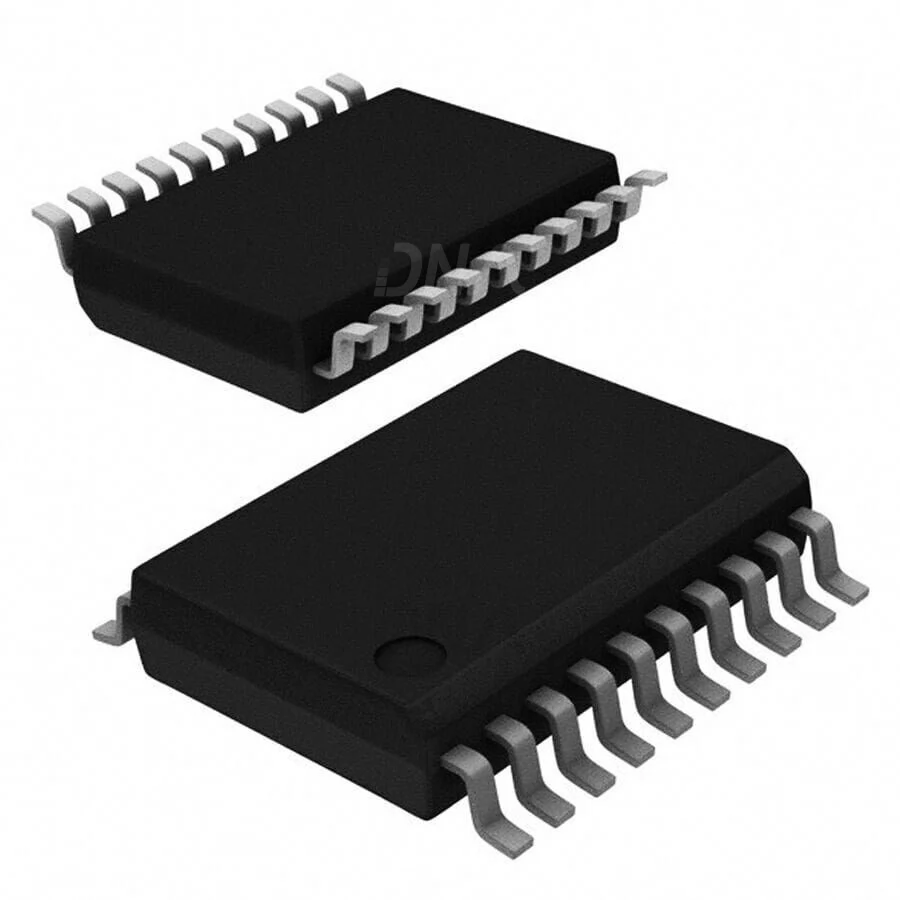

• HIP4081A High Frequency Full Bridge FET Driver (SOIC20)

Product Images are shown for illustrative purposes only and may differ from actual product.

HIP4081A High Frequency Full Bridge FET Driver (SOIC20)

  • Stock: Out Of Stock
  • SKU: 4032 | DAG729

Availability: NotInStock priceValidUntil: 2025-09-20

  • Rs. 289.10 (inc GST)
    Rs.245.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HIP4081A High Frequency Full Bridge FET Driver (SOIC20)

HIP4081A High Frequency Full Bridge FET Driver (SOIC20)

The HIP4081AIBZT is a 80V/2.5A peak high frequency full bridge N-channel FET Driver IC with charge pump and independent control inputs. The HIP4081A can drive every possible switch combination except those which would cause a shoot-through condition. The HIP4081A IC can switch at frequencies up to 1MHz and is well suited to driving voice coil motors, high-frequency switching power amplifiers and power supplies. For example, the HIP4081A Full bridge FET driver IC can drive medium voltage brush motors and two HIP4081As can be used to drive high performance stepper motors, since the short minimum "on-time" can provide fine micro-stepping capability. Short propagation delays of approximately 55ns maximizes control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in rapid, precise control of the driven load.

DNA solutions, Nashik has various types of Power IC's. Check out our complete collection of  Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of HIP4081A High Frequency Full Bridge FET Driver (SOIC20)

  • On-chip charge-pump and bootstrap upper bias supplies
  • DIS (Disable) overrides input control
  • Drives 1000pF load at 1MHz in free air at 50°C with rise and fall times of typically 10ns
  • User-programmable dead time
  • Independently drives 4 N-channel FETs in half bridge or full bridge configurations
  • Bootstrap supply maximum voltage to 95VDC
  • Input logic thresholds compatible with 5 to 15V logic levels
  • Very low power consumption
  • Under-voltage protection

Applications of HIP4081A IC

  • Power Management
  • Motor Drive & Control
  • Computers & Computer Peripherals

Related Links

    Package Includes

    1 x HIP4081A High Frequency Full Bridge FET Driver (SOIC20)

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
