Waveshare Mini Uninterruptible Power Supply Module

Waveshare Mini UPS module with 5V 2.5A output, I2C communication, and battery monitoring.

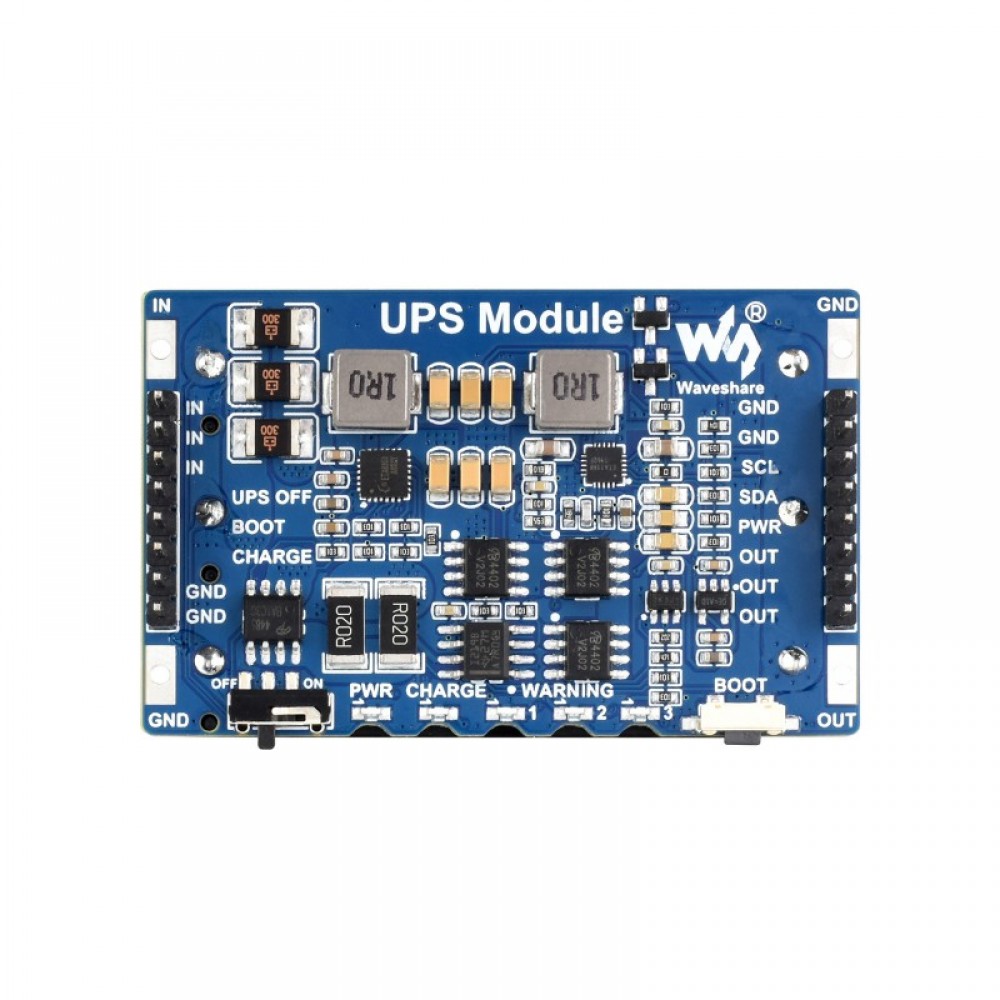

The Waveshare Mini Uninterruptible Power Supply Module provides reliable power for your projects. It supports simultaneous charging and power output with a 5V 2.5A supply, making it ideal for mobile robots and industrial control equipment. The I2C bus communication allows real-time monitoring of battery voltage, current, power, and remaining capacity. This module is equipped with multiple function pins for flexible integration and two charging methods via pads and pin headers.

Safety is a priority with the Waveshare Mini Uninterruptible Power Supply Module. It features multiple battery protection circuits, including overcharge, over-discharge, and short circuit protection. The onboard 5V regulator ensures stable performance with up to 2.5A continuous output current. Additionally, warning indicators help verify battery connection and charging status.

The Waveshare Mini Uninterruptible Power Supply Module is a perfect choice for developers needing a compact, efficient solution for power management in electronics projects. With its easy soldering capabilities and comprehensive online resources, it's a valuable addition to any electronic toolkit.

Explore the reliability of Waveshare products at DNA, your trusted retailer for Power Devices. Discover our range of products designed to meet your electronic needs. Check other Power Devices that we have in stock.

If you are searching for specific electronic components, reach out to us at DNA. We can help you find parts like development boards, DC to DC converter ICs, microcontrollers, and more. We also offer import services if needed. Contact Us.

Features of Waveshare Mini Uninterruptible Power Supply Module

• Mini UPS expansion board for easy integration
• I2C communication for real-time monitoring
• Multiple battery protection circuits for safety
• Onboard 5V regulator with 2.5A output
• Warning indicators for battery status

Specification of Waveshare Mini Uninterruptible Power Supply Module

• OUTPUT VOLTAGE: 5V 2.5A
• CHARGER SUPPORT: 5V 3A
• CONTROL BUS: I2C

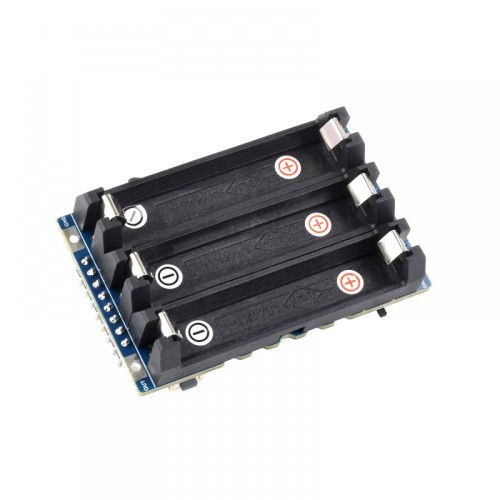

• BATTERY SUPPORT: 10440 Lithium battery × 3 (in parallel)
• DIMENSIONS: 61 × 38mm

Applications of Waveshare Mini Uninterruptible Power Supply Module

• Mobile robots
• Industrial control equipment
• Battery management systems
• Electronics development projects

Package Includes

• 1 X Waveshare Mini Uninterruptible Power Supply Module
