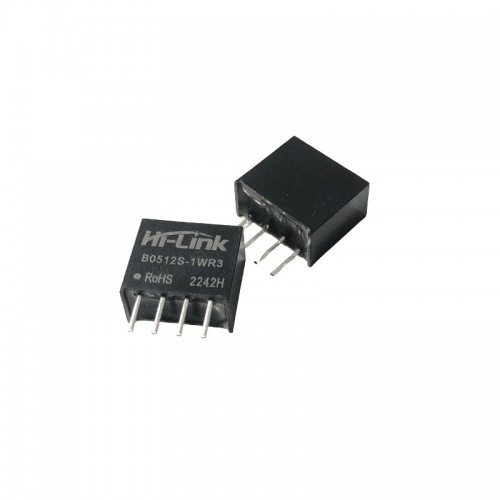

Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Hi-Link
  • SKU: 9772 | DAI508

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 87.08 (inc GST)
    Rs.73.80 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module

Hi-Link B0512S-1WR3 isolated DC/DC module converts 4.5–5.5 V DC to 12 V DC, with 1 W output and input-to-output isolation.

Hi-Link B0512S-1WR3 is an unregulated, isolated DC/DC power module that converts a nominal 5 V DC input into a single 12 V DC output. Its 1 W rating suits low-power circuits that need a separate output supply. Use this 5 V to 12 V isolated DC/DC converter where the input and output must remain isolated.
The module accepts a 4.5–5.5 V DC input and includes continuous short-circuit protection. Its single-output design and capacitive input filtering help simplify power integration, while the SIP package fits compact circuit boards. The output needs a load of at least 10% of rated load for specified performance.
Use it in on-board isolated power systems, pure digital circuits, low-frequency analog circuits, relay drive circuits and data exchange circuits. This 1 W isolated power module supports designs that need a 12 V rail separate from the input supply.
Shop Hi-Link Power Supply Module at DNA for isolated DC/DC power conversion. Explore Hi-Link options for your electronic designs and check our current stock. Check other Hi-Link Power Supply Module that we have in stock
Indian electronics buyers can contact DNA if they cannot find a part. Ask us about import support and retail or bulk orders. You can also enquire about Nextion Display, Capacitor, IGBT, Inductor, Resistor or Sensor. Contact Us

Features of Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module

  • Input-to-output isolation
  • Continuous short-circuit protection
  • Single-output conversion
  • Capacitive input filtering
  • SIP package for board integration

Specifications of Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module

  • Input voltage range: 4.5–5.5 V DC
  • Output voltage: 12 V DC, ±15% maximum accuracy
  • Output current: 9 mA minimum to 84 mA maximum
  • Rated output power: 1 W
  • Efficiency: 80% minimum, 83% typical at full load
  • Minimum output load: 10% of rated load
  • Operating temperature: −40 °C to +85 °C
  • Input-to-output insulation voltage: 1500 V DC minimum for a 1-minute test

Applications of Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module

  • On-board power supply systems requiring input-to-output isolation
  • Pure digital circuits
  • General low-frequency analog circuits
  • Relay drive circuits and data exchange circuits

Related Links for Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module

Package Includes

  • 1 X Hi-Link B0512S-1WR3 Isolated DC/DC Power Supply Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
