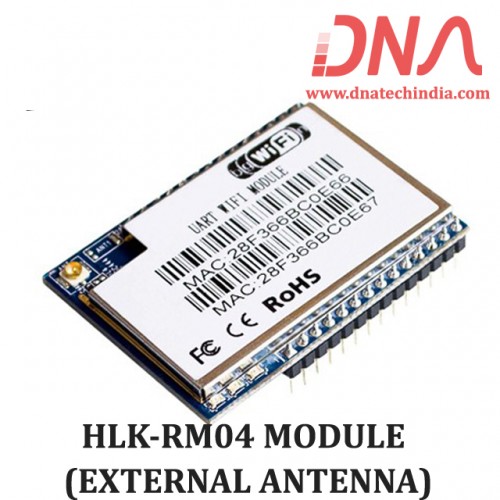

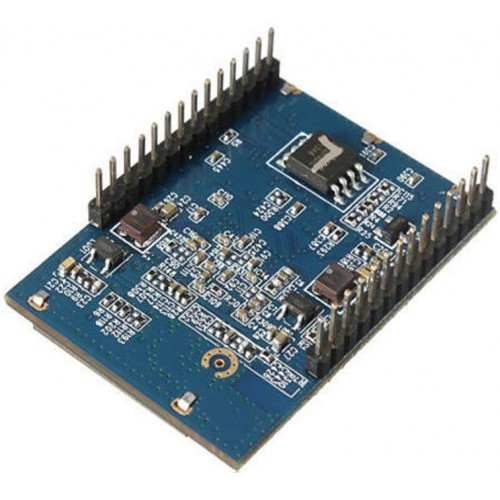

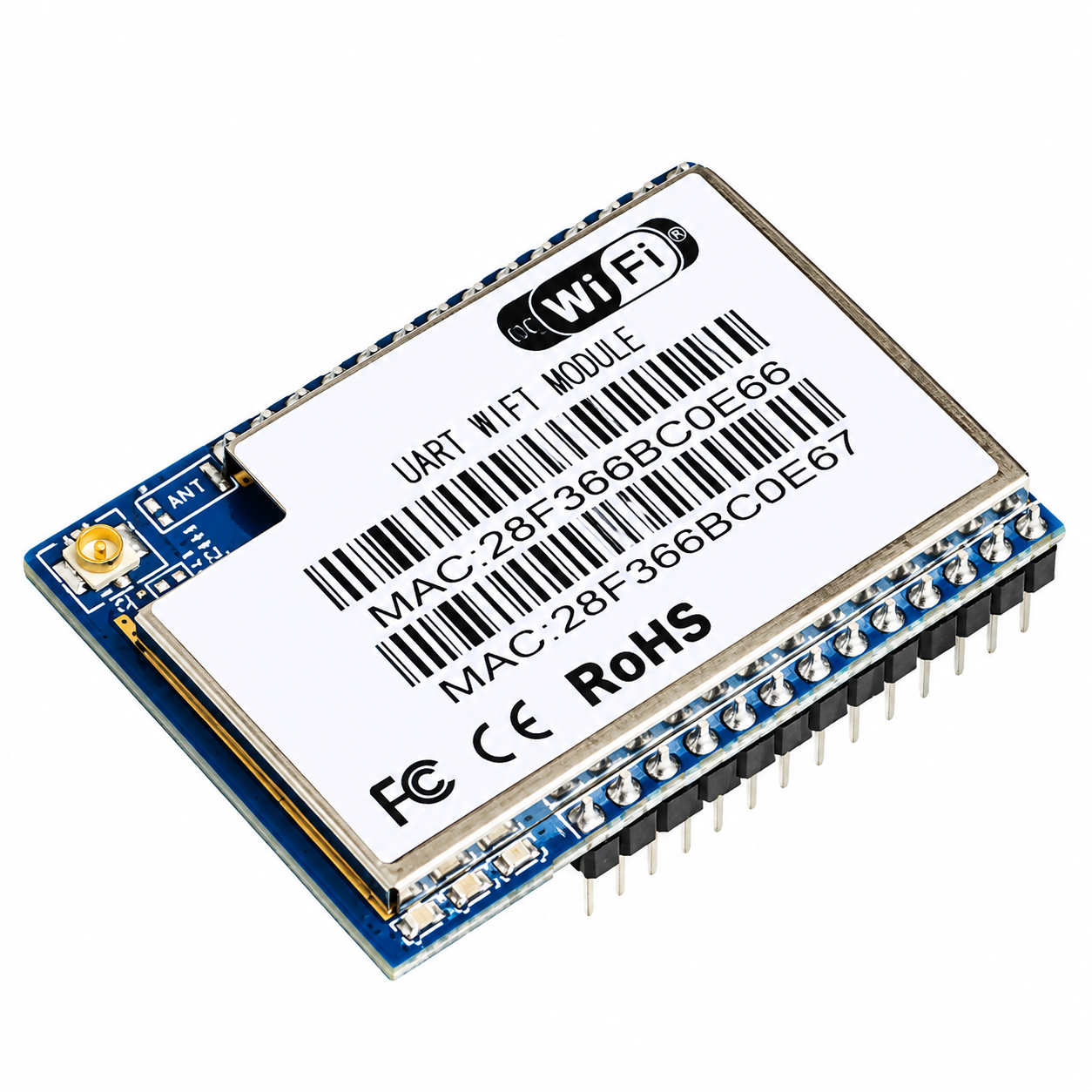

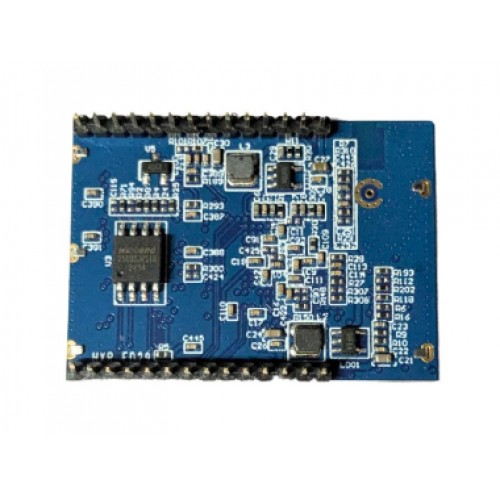

Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-12-18

  • Brand: Hi-Link
  • SKU: 2210 | DAB783

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 1,239.00 (inc GST)
    Rs.1,050.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module

HLK-RM04 UART-to-Ethernet and Wi-Fi module with 2.4 GHz 802.11b/g/n, a built-in TCP/IP stack and UART rates from 1200 to 500000 bps.

The Hi-Link HLK-RM04 is an UART-to-Ethernet and Wi-Fi module that links serial equipment to wired or wireless networks. It has a built-in TCP/IP stack and supports 2.4 GHz Wi-Fi for network data communication.
Its client, access point and router modes let designers choose how the module joins a network. Transparent transmission provides a direct path for serial data, while UART, WAN and LAN interfaces bring device links together. The I-PEX RF port allows an antenna connection.
Use the HLK-RM04 in home and commercial building automation, telemetry and remote control systems. Its combined serial, Ethernet and Wi-Fi functions can connect equipment that needs to send data over a network.
DNA stocks Hi-Link modules in the Wifi category for electronics buyers and project teams. Check other Wifi that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders. We can also help you find related Crystal, Analog IC, LCD, IGBT, Digital IC or SMPS parts. Contact Us

Features of Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module

  • Built-in TCP/IP stack handles network communication
  • Supports Wi-Fi client, access point and router modes
  • Transparent transmission supports serial data flow
  • UART, Ethernet WAN and LAN interfaces in one module
  • AT+ instructions and serial or web configuration

Specifications of Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module

  • Wi-Fi: 2.4–2.5 GHz, IEEE 802.11b/g/n
  • Ethernet: IEEE 802.3 and IEEE 802.3u
  • UART baud rate: 1200–500000 bps
  • Module supply voltage: 3.9–5.5 V
  • Interfaces: UART, RJ45 WAN and RJ45 LAN
  • Module size: 29 × 40 × 8.8 mm
  • Module pins: 28
  • RF port: I-PEX connector, 50 Ω impedance at 2.4–2.5 GHz

Applications of Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module

  • Home and commercial building automation
  • Telemetry
  • Remote control
  • Wi-Fi LED control

Related Links for Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module

Package Includes

  • 1 X Hi-Link HLK-RM04 UART-to-Ethernet and Wi-Fi Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
