Product Images are shown for illustrative purposes only and may differ from actual product.

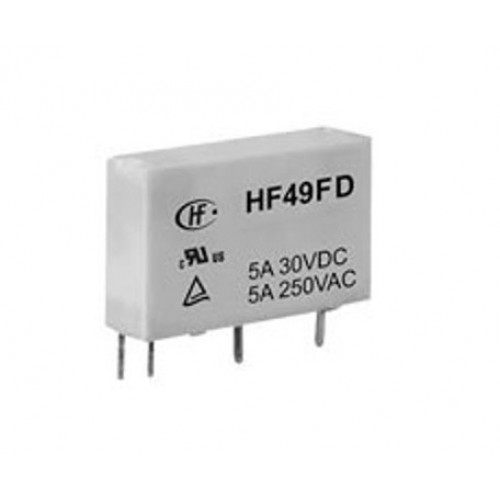

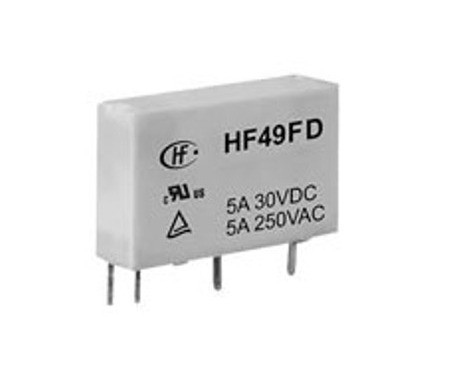

Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay

  • Stock: 15

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: Hongfa
  • SKU: 3211 | DAE890

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 128.36 (inc GST)
    Rs.108.78 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay

HF49FD/005-1H11TF is a 5 VDC-coil miniature power relay with one normally-open contact, a 5 A resistive rating and PCB-mount terminals.

The Hongfa HF49FD/005-1H11TF is a 5 VDC-coil miniature power relay for PCB control circuits. Its single normally-open contact switches resistive loads up to 5 A at 250 VAC or 30 VDC, giving control boards a compact way to switch AC or DC loads.
PCB-mount terminals support direct board assembly, while the plastic-sealed body encloses the relay’s internal parts. The coil uses about 120 mW, which suits designs that need a low-power relay coil. Its Form A contact uses non-gold-plated AgSnO₂ material.
Designers use this 5 A PCB relay in UPS inverters, air conditioners, security equipment and household appliances. It links a low-voltage control circuit to a switched load in these systems.
Explore Hongfa Relay at DNA for relays used in electronic control designs. Browse our Hongfa range to find parts for your project and purchasing needs. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders in India. We can also help you find Power Supply, DC to DC Converter Module, Connectors, Transistor, LCD or Development Module parts. Contact Us

Features of Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay

  • Single normally-open Form A contact
  • PCB-mount terminals for board assembly
  • Plastic-sealed construction
  • Low-power coil design
  • Non-gold-plated AgSnO₂ contact material

Specifications of Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay

  • Contact rating: 5 A at 250 VAC or 30 VDC, resistive load
  • Maximum switching voltage: 250 VAC / 125 VDC at 0.3 A
  • Maximum switching current: 5 A
  • Maximum switching power: 1250 VA / 150 W
  • Coil nominal voltage: 5 VDC
  • Coil power: Approximately 120 mW at 5–18 VDC
  • Insulation resistance: 1000 MΩ at 500 VDC
  • Dielectric strength: 3000 VAC for 1 minute between coil and contacts

Applications of Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay

  • UPS inverters
  • Air conditioners
  • Security equipment
  • Household appliances

Related Links for Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay

Package Includes

  • 1 X Hongfa HF49FD/005-1H11TF 5 VDC Miniature Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
