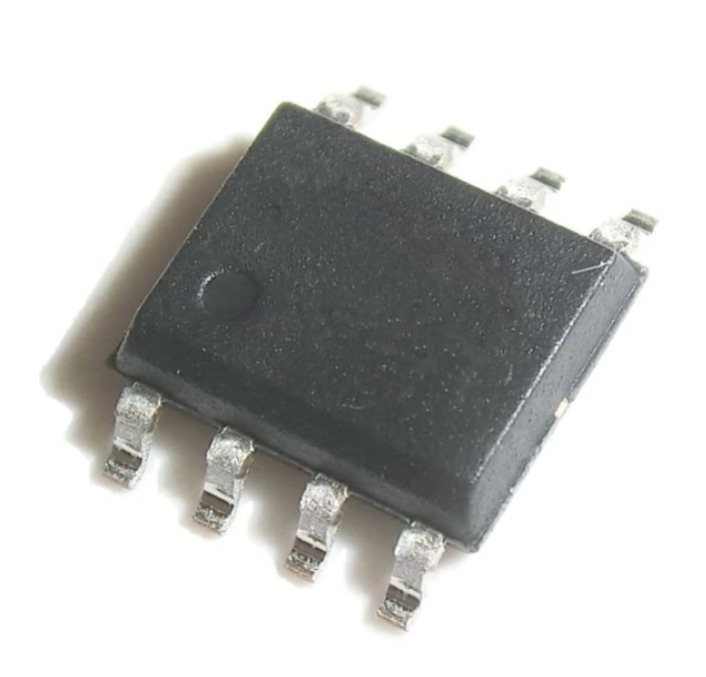

• ID5S606B High Speed Switching SOP8 Chip IC

Product Images are shown for illustrative purposes only and may differ from actual product.

ID5S606B High Speed Switching SOP8 Chip IC

  • Stock: Out Of Stock
  • SKU: 7384 | DAH151
  • Rs. 94.40 (inc GST)
    Rs.80.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ID5S606B High Speed Switching SOP8 Chip IC

ID5S606B High Speed Switching SOP8 Chip IC

The ID5S606B is a high-side power switch designed for use in various power management and load switching applications. It integrates an N-channel MOSFET for power switching and is controlled by an internal driver that allows high-efficiency switching with minimal losses. Typically used in automotive, industrial, and consumer electronics, the ID5S606B is optimized for applications where load control, protection, and low stand by power consumption are crucial.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ID5S606B High Speed Switching SOP8 Chip IC

  • High-Side Switching: Designed as a high-side switch to control power to loads from the positive supply rail.
  • Low On-Resistance: Features low R<sub>DS(on)</sub>, ensuring minimal power loss during operation, improving efficiency.
  • Integrated Protection: Built-in protection features such as overcurrent, thermal shutdown, and under voltage lockout (UVLO).
  • Fast Switching: High-speed switching for fast turn-on and turn-off times, making it suitable for high-frequency applications.
  • Low Standby Power: Minimal quiescent current when the switch is in the off state, ensuring energy efficiency.

Specifications of ID5S606B High Speed Switching SOP8 Chip IC

  • Input Voltage Range: Typically operates from 3.3V to 28V, allowing flexibility in a wide range of applications.
  • Continuous Current (I<sub>OUT</sub>): Designed to handle high current loads, typically up to 6 A (check for exact load rating).
  • On-Resistance (R<sub>DS(on)</sub>): Low R<sub>DS(on</sub>), typically in the range of milliohms (exact value dependent on voltage and conditions).
  • Quiescent Current: Low quiescent current to optimize standby power (exact current dependent on load and operational status).

    Package Includes

    • 1 x ID5S606B High Speed Switching SOP8 Chip IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
