IKCM30F60GAXKMA1 Motor Driver And Controller IC

IKCM30F60GAXKMA1 Motor Driver And Controller IC

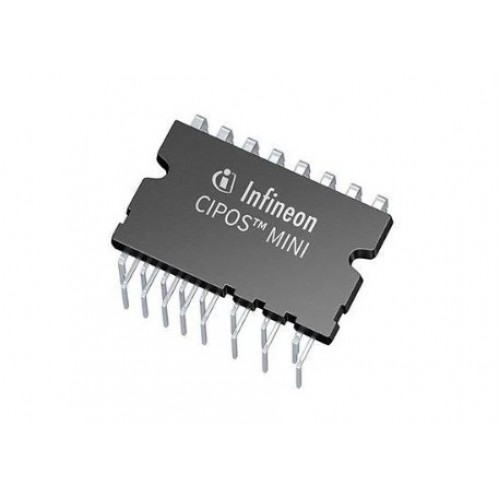

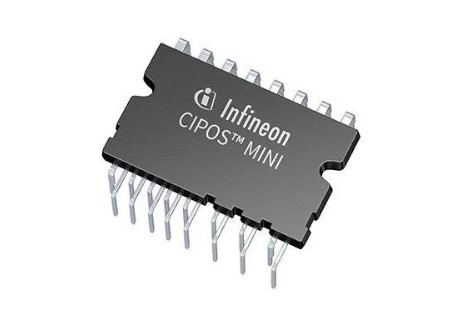

The IKCM30F60GAXKMA1 from Infineon is a Control Integrated Power System (CIPOS) mini transfer molded intelligent power module. This dual in-line intelligent power module (3Φ -bridge 600V/30A) achieves cost efficiency and it is designed specifically for home appliance and low power industrial application. The CIPOS module family offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed to control three phase AC motors and permanent magnet motors in variable speed drives for applications like an air conditioning, refrigerator and washing machine. The package concept is specially adapted to power applications which need good thermal conduction and electrical isolation but also EMI save control and overload protection. TRENCHSTOP IGBTs and anti parallel diodes are combined with an optimized SOI gate driver for excellent electrical performance.

DNA solutions, Nashik has various types of Motor Driver's. Check out our complete collection of Motor Driver's.

• Voltage & Current Ratings: 600 V collector-emitter voltage, 30 A output current.

• Integrated Gate Driver: SOI technology ensures stability against transient and negative voltages.

• Built-in Thermistor: Facilitates temperature monitoring for enhanced safety.

• Compact Design: 24-Pin DIP package with through-hole mounting.

• High Switching Frequency: Operates efficiently up to 20 kHz.

• Isolation Voltage: Provides 2000 V rms isolation between input and output.

Specifications of IKCM30F60GAXKMA1 Motor Driver And Controller IC

• Product Category: Motor Driver And Controller

• Type: Half Bridge

• Output Current: 30 A

• Operating Supply Current: 370 uA

• Mounting Style: Through Hole

Applications of IKCM30F60GAXKMA1 Motor Driver And Controller IC

• Home Appliances

• Industrial Automation

• HVAC Systems

• General Motor Control

Package Includes

      1 x IKCM30F60GAXKMA1 Motor Driver And Controller IC
