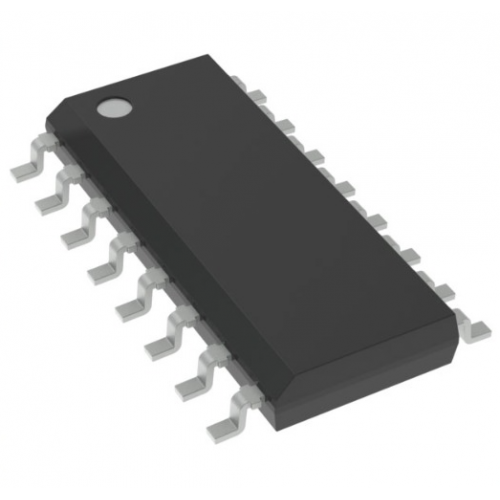

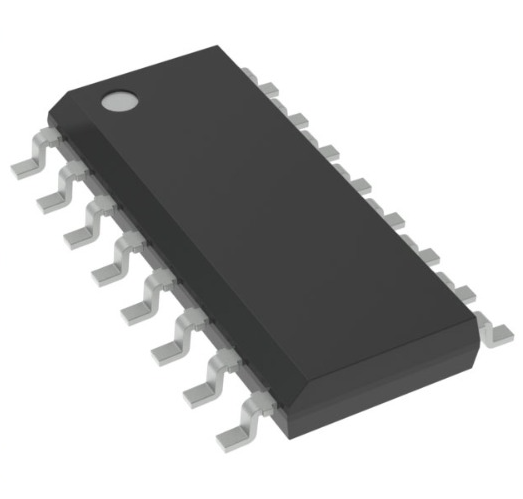

Product Images are shown for illustrative purposes only and may differ from actual product.

ULN20004D1013TR Power Relay SMD IC


Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-08-17

  • SKU: 7888 | DAH450

Availability: NotInStock priceValidUntil: 2026-08-17

  • Rs. 23.54 (inc GST)
    Rs.19.95 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ULN20004D1013TR Power Relay SMD IC for Motor Control

ULN20004D1013TR Relay IC for driving inductive loads, 7 channels, 500 mA output current.

The ULN20004D1013TR Power Relay SMD IC is a high-voltage, high-current solution for driving inductive loads like motors and relays. It includes seven NPN Darlington pairs and integrated suppression diodes, ensuring protection for your devices. This compact SMD package fits easily into tight spaces, making it a smart choice for modern electronic designs.

Ideal for applications in industrial automation, the ULN20004D1013TR Power Relay SMD IC interfaces low-level logic with high-power devices seamlessly. With an output current of 500 mA per channel and a maximum output voltage of 50V, it provides the reliability needed for various control systems.

Incorporate the ULN20004D1013TR Power Relay SMD IC into your projects for effective relay driving, motor control, and LED display systems. Its compatibility with TTL and 5V CMOS logic ensures versatility in different electronic applications.

Explore the reliability of Motor Drivers with the ULN20004D1013TR from a trusted manufacturer. At DNA Solutions, we offer a wide selection of Motor Driver products. Check other Motor Driver that we have in stock.

If you are searching for specific electronic components, contact us. We can import parts if they are not readily available. We also support retail and bulk orders. Consider related items like Diodes, Hongfa Relays, Capacitors, Development Modules, Crystals, and Programmers. Contact Us.

Features of ULN20004D1013TR Power Relay SMD IC

  • High-voltage, high-current Darlington transistor array
  • Built-in clamp diodes for inductive load protection
  • Compatible with TTL and 5V CMOS logic
  • SMD package for compact PCB design
  • Ideal for driving relays, motors, and lamps

Specification of ULN20004D1013TR Power Relay SMD IC

  • Part Number: ULN20004D1013TR
  • Channel Count: 7 channels
  • Output Current: 500 mA per channel
  • Output Voltage: Up to 50V
  • Package Type: SOIC-16 SMD

Applications of ULN20004D1013TR Power Relay SMD IC

  • Relay driving for automation systems
  • Motor and lamp drivers
  • LED display systems
  • Industrial control equipment

Related Links for ULN20004D1013TR Power Relay SMD IC for Motor Control

Package Includes

  • 1 X ULN20004D1013TR Power Relay SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
