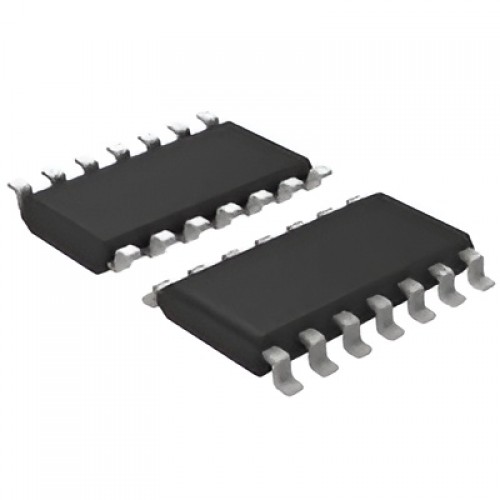

Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch

Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch

BTS712N1XUMA1 four-channel smart high-side power switch with 5–34 V operating supply, diagnostic feedback and integrated protection.

The Infineon BTS712N1XUMA1 is a four-channel smart high-side power switch for grounded loads. It operates from a 5–34 V supply and uses CMOS-compatible inputs, so a microcontroller can control the outputs and read diagnostic feedback.

Its integrated protection responds to overloads, short circuits and excess heat. Auto-restart supports recovery after undervoltage or overvoltage shutdown. An output clamp helps demagnetize inductive loads quickly, while open-load detection can report a load issue when the output is off.

Use this four-channel power switch with 12 V or 24 V DC systems that drive resistive, inductive or capacitive loads. It can also replace electromechanical relays or discrete switching circuits where protected load control and diagnostics are useful.

DNA supplies Infineon components for engineers and electronics buyers. Explore this smart high-side power switch and other parts in our Power Devices range. Check other Power Devices that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. You can also ask about Power Supply, Hongfa Relay, Humidity & Temperature Sensor, Programmer, Microcontroller and DC to DC Converter Module products. Contact Us

Features of Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch

• Four high-side channels switch power to grounded loads
• N-channel vertical power FETs with charge pumps
• Integrated overload, short-circuit and thermal protection
• Auto-restart after undervoltage or overvoltage shutdown
• Diagnostic feedback with open-load detection
• Output clamp helps demagnetize inductive loads

Specifications of Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch

• Number of channels: 4
• Operating supply voltage: 5 to 34 V, at Tj = -40 to +150 °C
• Nominal load current: 1.9 A typical per channel, on PCB at Ta = 85 °C and Tj ≤ 150 °C
• On-state resistance: 200 mΩ maximum per channel at Tj = 25 °C
• Junction temperature range: -40 to +150 °C
• Package: PG-DSO-20, 20 pins
• Pin pitch: 1.27 mm

Applications of Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch

• 12 V and 24 V DC grounded loads with microcontroller control and diagnostic feedback
• Switching resistive, inductive and capacitive loads
• Replacement of electromechanical relays and discrete circuits

Related Links for Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch

• Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch Datasheet

• Other Products from Power Devices Category

Package Includes

• 1 X Infineon BTS712N1XUMA1 Four-Channel Smart High-Side Power Switch
