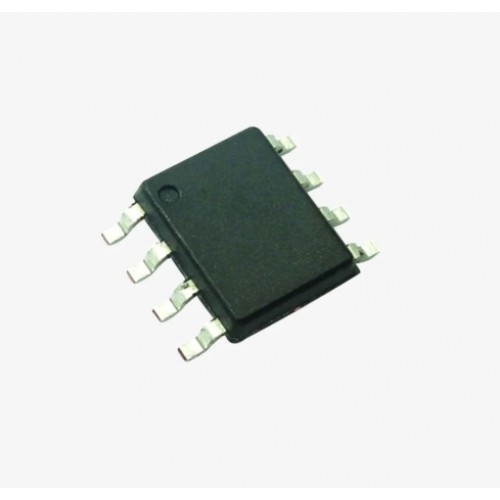

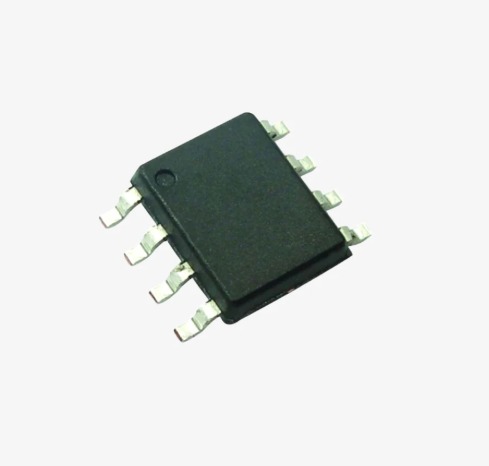

IR2104 Half Bridge Driver SMD IC

IR2104 Half Bridge Driver IC

IR2104 Half Bridge Driver IC designed for N-channel MOSFETs with 600V max supply and UVLO protection.

The IR2104 Half Bridge Driver IC is engineered for high-voltage, high-speed applications. It efficiently drives N-channel MOSFETs or IGBTs in half-bridge setups. This driver operates with a floating high-side driver and a low-side driver, offering independent inputs for versatile applications. Ideal for motor control, power conversion, and lighting ballasts, it features built-in under-voltage lockout (UVLO) protection, ensuring reliable performance.

With an operating voltage range of up to 600V, the IR2104 Half Bridge Driver IC is compatible with 3.3V, 5V, and 15V logic levels. Its latch-up immune CMOS technology and independent control inputs enhance its usability in various industrial automation tasks. The driver also boasts a typical turn-on propagation delay of 750ns, ensuring swift responses in dynamic environments.

Explore the potential of the IR2104 Half Bridge Driver IC in applications such as inverters and power supplies. It is designed to meet the needs of Indian customers seeking reliable electronic components for their projects. Its robust specifications and efficient operation make it a suitable choice for engineers and hobbyists alike.

At DNA, we offer a range of high-quality MOSFET & IGBT products. Explore the IR2104 Half Bridge Driver IC and other reliable components from leading brands. Check other "MOSFET & IGBT" that we have in stock.

If you’re searching for specific electronic components, contact us. We can help you find parts like Digital ICs, Inductors, Resistors, and more. We also support retail and bulk orders, and can import items if needed. Contact Us.

Features of IR2104 Half Bridge Driver IC

• High-voltage half-bridge gate driver
• Floating high-side driver with bootstrap operation
• Under-voltage lockout protection
• 3.3V, 5V, and 15V logic-compatible input
• Latch-up immune CMOS technology
• Independent logic inputs for control

Specification of IR2104 Half Bridge Driver IC

• Supply Voltage (Vcc): 10V – 20V
• High-side Floating Supply Voltage (Vs): Up to 600V
• Logic Input Voltage: -0.3V to 20V
• Output Current: 120mA (source), 250mA (sink)
• Dead Time: 540ns (typical)
• Turn-On Propagation Delay: 750ns (typical)
• Turn-Off Propagation Delay: 150ns (typical)
• Operating Temperature Range: -40°C to +125°C

Applications of IR2104 Half Bridge Driver IC

• Inverters
• Motor Drivers
• Power Supplies
• Lighting Ballasts
• Industrial Automation

Package Includes

• 1 X IR2104 Half Bridge Driver SMD IC
