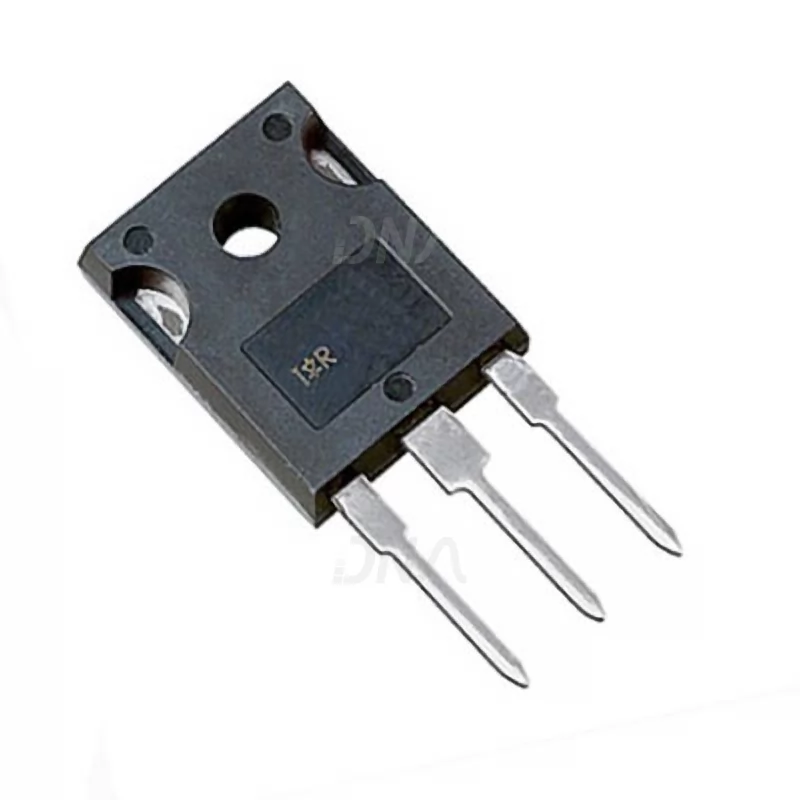

IRG4PC40UD Ultra-Fast CoPack IGBT

IRG4PC40UD is an IGBT with Ultrafast Soft Recovery Diode.

Features of IRG4PC40UD Ultra-Fast CoPack IGBT

• Ultra-Fast : Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode

• Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3

• IGBT co-packaged with HEXFREDTM ultra-fast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations

• Industry standard TO-247AC package

• Generation -4 IGBT's offer highest efficiencies available

• IGBT's optimized for specific application conditions

• HEXFRED diodes optimized for performance with IGBT's . Minimized recovery characteristics require less/no snubbing

• Designed to be a "drop-in" replacement for equivalent industry-standard Generation 3 IR IGBT's

• Collector-to-Emitter Voltage V_CES 600 V

• Continuous Collector Current (I_C @ T_C = 25°C) 40 Amp


• Continuous Collector Current (I_C @ T_C = 100°C) 20 Amp


• Pulsed Collector Current (I_CM)  160 Amp

• Clamped Inductive Load Current (I_LM)‚ 160 Amp


• Diode Continuous Forward Current (I_F @ T_C = 100°C) 15 Amp


• Diode Maximum Forward Current (I_FM) 160Amp

• Gate-to-Emitter Voltage (V_GE)± 20 V

• Maximum Power Dissipation (P_D @ T_C = 25°C) 160

• Maximum Power Dissipation (P_D @ T_C = 100°C) 65
