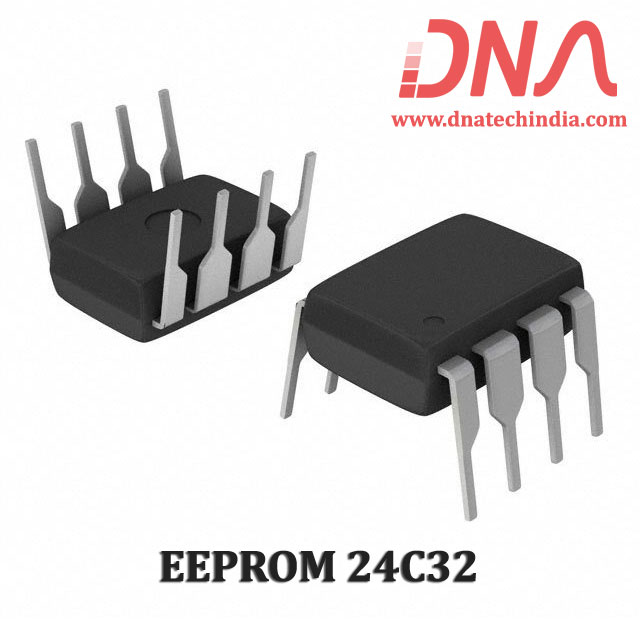

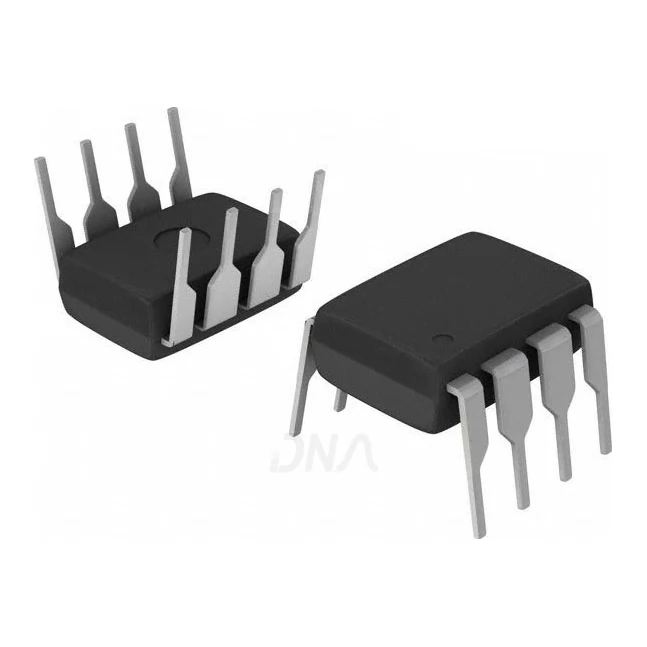

EEPROM 24C32

24C32 32K 5 volts I2C EEPROM

The Microchip Technology Inc. 24C32 is a 4K x 8 (32K bit) Serial Electrically Erasable PROM. This device has been developed for advanced, low power applications such as personal communications or data acquisition. The 24C32 features an input cache for fast write loads with a capacity of eight 8-byte pages, or 64 bytes. It also features a fixed 4K-bit block of ultra-high endurance memory for data that changes frequently.

The 24C32 EEPORM is capable of both random and sequential reads up to the 32K boundary. Functional address lines allow up to eight 24C32 devices on the same bus, for up to 256K bits address space. Advanced CMOS technology makes this device ideal for low-power non-volatile code and data applications.The 24C32 I2C EEPROM is available in the standard 8-pin plastic DIP and 8-pin surface mount SOIC package.

We have various types EEPROMS and other Memory IC. Check our complete collection of EEPROM IC's.

Features of 24C32 I2C EEPROM IC

• Industry standard two-wire bus protocol, I2C compatible
• Self-timed write cycle (including auto-erase)
• Power on/off data protection circuitry
• Block 8 byte page, or byte modes available
• 1 page x 8 line input cache (64 bytes) for fast write loads
• Schmitt trigger, filtered inputs for noise suppression
• Output slope control to eliminate ground bounce
• 2 ms typical write cycle time, byte or page
• Up to 8 chips may be connected to the same bus for up to 256K bits total memory
• Electrostatic discharge protection > 4000V
• Data retention > 200 years
• 8-pin PDIP/SOIC packages
