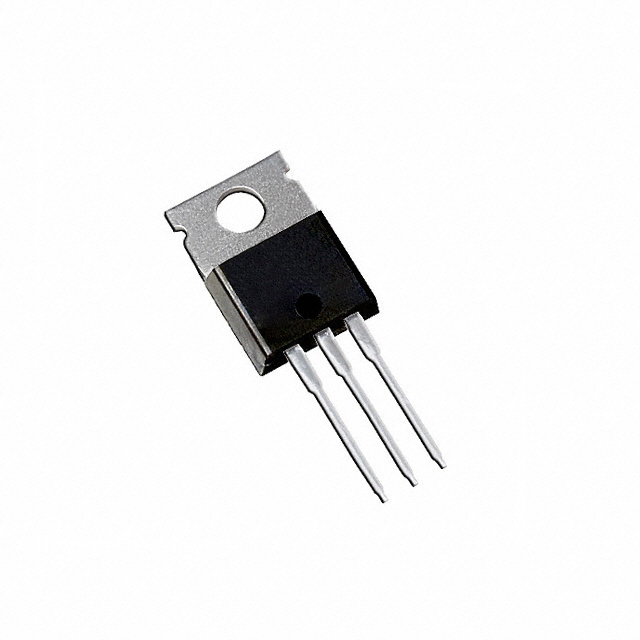

IRL540NPBF N Channel MOSFET


Write a review | 1 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-10-14

  • SKU: 9964 | DAI656

Availability: InStock priceValidUntil: 2026-10-14

  • Rs. 85.49 (inc GST)
    Rs.72.45 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

IRL540NPBF N Channel MOSFET Power Transistor

IRL540NPBF MOSFET for low-voltage applications, 100V Drain-Source Voltage, 28A Continuous Drain Current.

The IRL540NPBF N Channel MOSFET is designed for low-voltage, high-speed switching applications. With a low gate threshold voltage and high current capability, this logic-level MOSFET suits load switching, motor driving, and power management systems. Its low RDS(on) minimizes conduction losses, ensuring efficient performance. The standard TO-220 package allows for easy mounting on heatsinks, enhancing its usability in various electronic designs.

Ideal for applications like DC-DC converters, motor control circuits, and high-speed switching, the IRL540NPBF N Channel MOSFET excels in delivering reliable performance. Its specifications include a Drain-Source Voltage of 100V and a Continuous Drain Current of 28A. This component is essential for engineers and hobbyists looking to optimize their electronic projects with high-efficiency solutions.

Explore the versatility of the IRL540NPBF N Channel MOSFET in embedded systems and automation. It serves as a reliable relay replacement, making it a must-have for any electronics toolkit. Experience its high-speed switching and efficiency in your next project.

Explore the range of MOSFET & IGBT from DNA. The IRL540NPBF by a trusted manufacturer offers reliable solutions for your electronic needs. Check other "MOSFET & IGBT" that we have in stock.

If you are seeking specific electronic parts, reach out to DNA. We can import components not available in India and support both retail and bulk needs. Explore items like Transistors, Analog ICs, SMPS, Development Boards, Hongfa Relays, and Digital ICs. Contact Us.

Features of IRL540NPBF N Channel MOSFET

  • N-Channel enhancement mode
  • Low gate drive requirement
  • Low RDS(on) for high efficiency
  • High-speed switching performance
  • TO-220 package for heat dissipation

Specification of IRL540NPBF N Channel MOSFET

  • Drain-Source Voltage: 100V
  • Continuous Drain Current: 28A
  • Gate Threshold Voltage: 1.0V - 2.0V
  • RDS(on): 0.077Ω (max) @ VGS = 4V
  • Power Dissipation: 94W

Applications of IRL540NPBF N Channel MOSFET

  • DC-DC converters
  • Motor control circuits
  • High-speed switching
  • Load switching in embedded systems
  • Relay replacement in automation

Related Links for IRL540NPBF N Channel MOSFET Power Transistor

Package Includes

  • 1 X IRL540NPBF N Channel MOSFET
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
