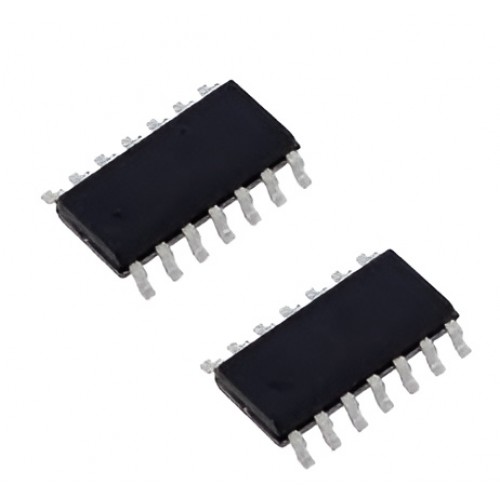

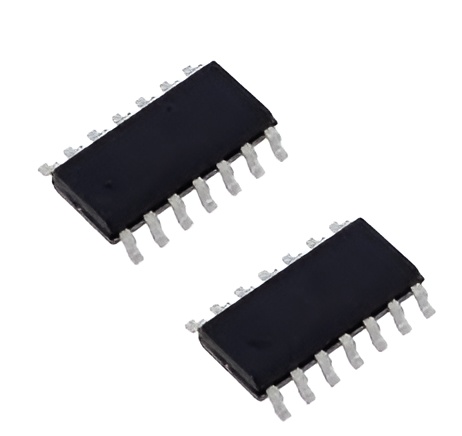

Product Images are shown for illustrative purposes only and may differ from actual product.

74HC14D High Speed CMOS Hex Inverter With Schmitt Trigger SMD IC

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-17

  • SKU: 8919 | DAI256

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 31.86 (inc GST)
    Rs.27.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

74HC14D High Speed CMOS Hex Inverter with Schmitt Trigger SMD IC

74HC14D CMOS Hex Inverter with Schmitt Trigger; 6 inverters; Low power consumption; Wide voltage range 2V to 6V.

The 74HC14D High Speed CMOS Hex Inverter with Schmitt Trigger SMD IC is designed for reliable signal conditioning and waveform shaping. This component features six independent inverters, each equipped with Schmitt-trigger inputs for enhanced noise immunity. With a supply voltage range of 2V to 6V, it operates efficiently in various applications like debouncing and pulse generation. The fast switching and low power consumption make it suitable for modern electronic designs.
Engineered for versatility, the 74HC14D is ideal for applications requiring noise filtering and oscillator generation. Its compact SOIC-14 or TSSOP-14 packages allow easy integration into your projects. Whether you are working on simple circuits or complex systems, this hex inverter can handle your needs with high noise immunity and precise performance.
For Indian customers, the 74HC14D provides an excellent solution for enhancing signal integrity in your designs. Its robustness and efficiency make it a preferred choice among engineers and hobbyists alike. Explore the potential of the 74HC14D in your next project.
At DNA, we offer a wide range of reliable components including the 74HC14D from the 7400 Series IC's category. Discover our collection of 7400 Series IC's that provide solutions for various applications in electronics. Check other "7400 Series IC's" that we have in stock.
Are you searching for specific electronic components? At DNA, we can help you find what you need. If you can't locate certain parts, we can import them for you. We support both retail and bulk orders. Check out related items like Sensor Modules, DC to DC Converter ICs, and more. Contact Us.

Features of 74HC14D High Speed CMOS Hex Inverter with Schmitt Trigger SMD IC

  • 6 independent hex inverters
  • Schmitt-trigger inputs
  • Wide supply voltage range
  • High noise immunity
  • Low power consumption
  • Fast switching

Specification of 74HC14D High Speed CMOS Hex Inverter with Schmitt Trigger SMD IC

  • Logic Family: 74HC
  • Function: Hex Schmitt-Trigger Inverter
  • Number of Gates: 6
  • Input Type: Schmitt-Trigger
  • Supply Voltage Range: 2V to 6V
  • Output Current (per gate): ±25 mA (max)
  • Package: SOIC-14 / TSSOP-14
  • Propagation Delay: ~8 ns at 5V
  • Temperature Range: -40°C to +85°C or +125°C

Applications of 74HC14D High Speed CMOS Hex Inverter with Schmitt Trigger SMD IC

  • Signal conditioning
  • Pulse shaping
  • Noise filtering
  • Debouncing switches
  • Oscillator and waveform generators

Package Includes

  • 1 X 74HC14D High Speed CMOS Hex Inverter with Schmitt Trigger SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
