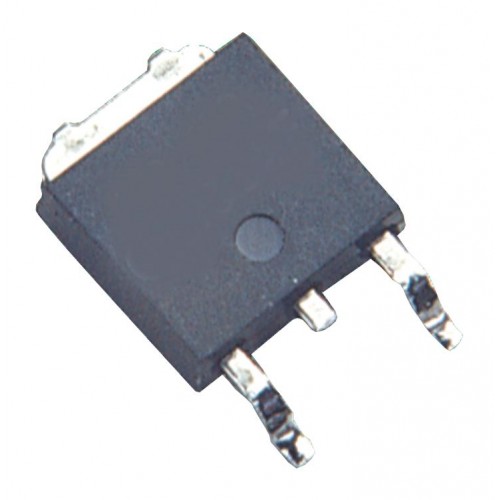

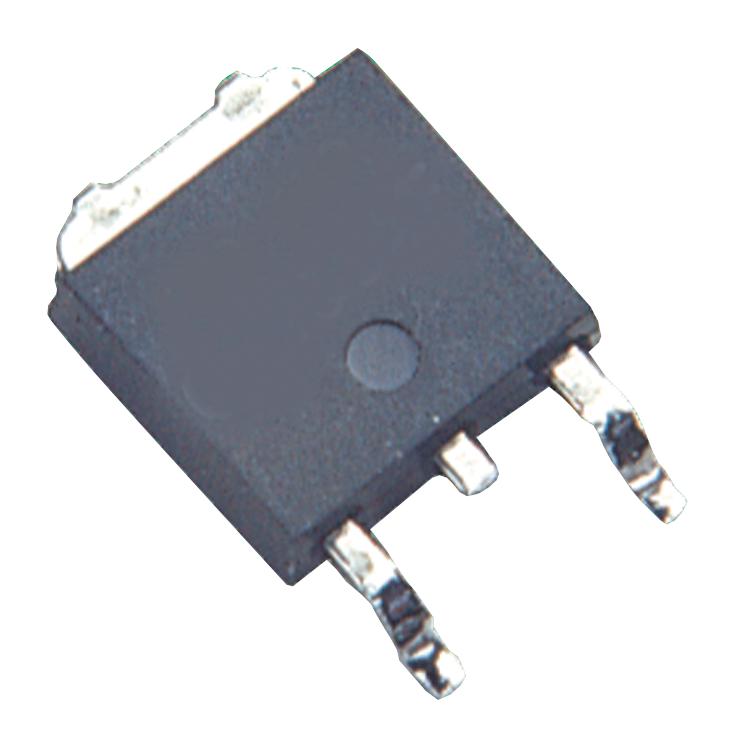

IXYS DPG60C300PC dual common-cathode fast recovery diode with 300 V reverse blocking and a TO-263 package.

IXYS DPG60C300PC is a dual fast recovery diode with a common-cathode design for circuits that need two diode paths in one device. It supports a maximum repetitive reverse blocking voltage of 300 V and comes in a TO-263 (D2Pak) package. The shared cathode helps simplify connections in compact power stages.

Its soft reverse recovery helps manage switching transitions, while planar-passivated chips and low leakage current support diode operation. The device also has avalanche-voltage-rated operation, a useful design factor when selecting a diode for a switching circuit.

Use this dual common-cathode diode as a freewheeling or snubber diode, or in rectifiers for switch-mode power supplies and UPS equipment. Its integrated pair suits layouts that need two fast diode paths with a common cathode.

DNA supplies IXYS components for electronics design and production. Explore this part and other options in the MOSFET & IGBT category, with support for component selection and ordering. Check other MOSFET & IGBT that we have in stock

If you cannot find the part you need, contact DNA for help. We support Indian electronics buyers with import assistance and retail or bulk orders. Ask us about MOSFETs, DC to DC Converter ICs, microcontrollers, connectors, Hongfa relays and resistors. Contact Us

Features of IXYS DPG60C300PC Dual Common-Cathode Fast Recovery Diode

• Soft reverse recovery
• Planar-passivated chip design
• Low leakage current
• Avalanche-voltage-rated operation
• Dual diodes share a common cathode

Specifications of IXYS DPG60C300PC Dual Common-Cathode Fast Recovery Diode

• Maximum repetitive reverse blocking voltage: 300 V (TJ = 25°C)
• Average forward current: 30 A per diode (TC = 140°C, TJ = 175°C, rectangular waveform, duty cycle = 0.5)
• Forward voltage drop: 1.35 V at 30 A and 1.66 V at 60 A (TJ = 25°C)
• Maximum reverse recovery time: 35 ns (TJ = 25°C) and 55 ns (TJ = 125°C), at IF = 30 A, VR = 200 V and -diF/dt = 200 A/µs
• Package: TO-263 (D2Pak, TO-263AB), common cathode
• Maximum total power dissipation: 175 W (TC = 25°C)
• Virtual junction temperature: -55°C to 175°C

Applications of IXYS DPG60C300PC Dual Common-Cathode Fast Recovery Diode

• Freewheeling diode
• Snubber diode
• Rectifiers in switch-mode power supplies (SMPS)
• Uninterruptible power supplies (UPS)
