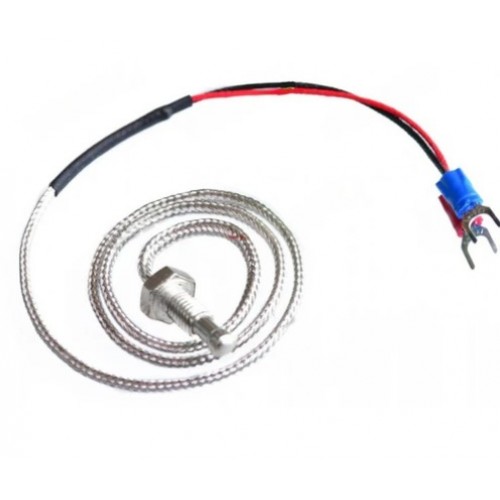

K-Type Thermocouple sensor

K-Type Thermocouple sensor

K-Type Thermocouple sensor

A Type K thermocouple Sensor refers to any temperature sensor containing Chromed and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, a wire, or another style of sensor or cable. A K-Type thermocouple sensor is one of the most common and widely used types of thermocouples for measuring temperature. It consists of two dissimilar metal wires, typically made from chromel (nickel-chromium alloy) and alumel (nickel-aluminum alloy), joined at one end to form a measuring junction.

DNA solutions, Nashik has various types of Sensor's. Check out our complete collection of  Sensor's.

• Wide Temperature Range: The K-Type thermocouple can measure temperatures ranging from -200°C to +1350°C, making it versatile for various applications.


• Durable and Robust: Constructed from durable materials, it is resistant to oxidation and corrosion, allowing it to with stand harsh environments.


• Fast Response Time: Provides quick and accurate temperature readings due to its simple and direct contact with the measured object.


• Cost-Effective: Relatively inexpensive compared to other types of temperature sensors, offering a good balance of performance and cost.


• Interchangeable: K-Type thermocouples are widely used, and replacement sensors are easily available.


Specifications of K-Type Thermocouple sensor

• Type: K-Type (Chromel-Alumel)


• Accuracy: Typically ±1.5°C or ±0.4% of the reading, whichever is greater.


• Wire Diameter: Common sizes include 0.5mm, 1.0mm, 1.5mm, depending on the specific application and response time requirements.


• Junction Type: Can be grounded, ungrounded, or exposed depending on the application needs.


• Sheath Material: Typically stainless steel, Inconel, or other high-temperature alloys.


• Output: Millivolt signal, proportional to the temperature difference between the hot junction and reference junction.


• Cold Junction Compensation: Required for accurate temperature measurement, usually provided by the measurement instrument.


Package Includes

• 1 x K-Type Thermocouple sensor
