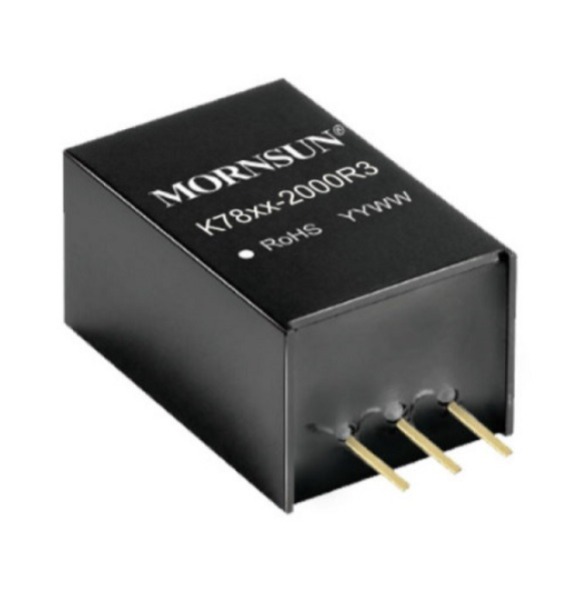

MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module

Name: MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module
Brand: Mornsun
SKU: DAG941
Price: 371.11 INR
Availability: InStock
Rating: 4 (4 reviews)

Write a review | 4 reviews

Stock: 100
Availability: InStock priceValidUntil: 2026-12-09
Brand: Mornsun
SKU: 7226 | DAG941

Rs. 371.11 (inc GST)
Rs.314.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module

MORNSUN K7803-2000R3 is a non-isolated DC/DC converter module with a 3.3 V regulated output, 6–36 VDC input range and 2 A maximum output current.

The MORNSUN K7803-2000R3 is a non-isolated DC/DC converter module with a regulated 3.3 V output. It accepts a 6–36 VDC input and supports a maximum output current of 2 A. Its design suits circuits that need a local regulated rail without electrical isolation.

The switching design offers an alternative to linear regulation, while pin compatibility with LM78XX series regulators can help with board layouts that use the same pin arrangement. Output short-circuit protection supports continuous, self-recovering operation after a fault.

Use this module in industrial control, instrumentation and electric power equipment that needs a regulated 3.3 V supply. Its single-output function provides a focused power conversion option for these systems.

DNA stocks MORNSUN modules for electronics projects, repairs and production needs. Browse our DC to DC Converter Modules to find options for your power design. Check other DC to DC Converter Modules that we have in stock

Cannot find the part you need? Contact DNA for import support and retail or bulk orders across India. You can also ask us about related items such as SMPS, Inductor, Power Supply, Digital IC, IGBT and Crystal. Contact Us

Features of MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module

Non-isolated switching conversion for a local regulated rail
Single regulated output
Pin-compatible with LM78XX series linear regulators
Output short-circuit protection with continuous self-recovering operation

Specifications of MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module

Input voltage: 6–36 VDC, nominal 24 VDC
Output voltage: 3.3 VDC
Maximum output current: 2000 mA
Full-load efficiency: 89% typical at minimum input voltage and 85% typical at maximum input voltage
Output voltage accuracy: ±2% typical, ±4% maximum at full load across the input range
Operating temperature: -40°C to +85°C, with output power derating
Switching frequency: 400 kHz typical at full load and nominal input

Applications of MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module

Industrial control
Instrumentation
Electric power

Package Includes

1 X MORNSUN K7803-2000R3 3.3V Non-Isolated DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
